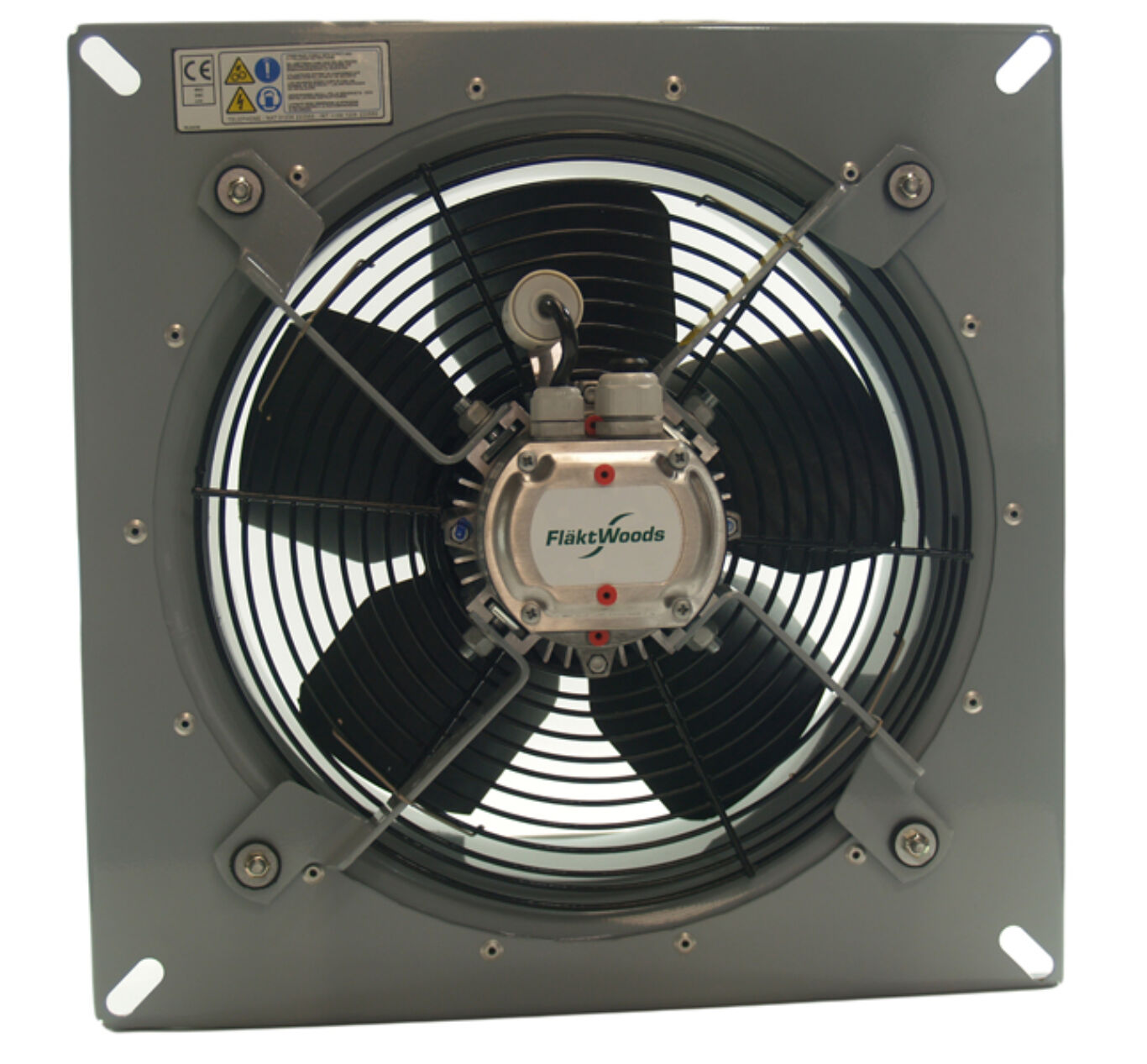

2102/315/4/1Ph Plate Mounted Extract Fan by Flakt Woods

Flakt Woods

2102/315/4/1Ph Plate Mounted Extract Fan by Flakt Woods
2102/315/4/1Ph Plate Mounted Extract Fan by Flakt Woods
2102/315/4/1Ph Plate Mounted Extract Fan by Flakt Woods
Overview

The Flakt Woods 2102 range of low cost high quality plate mounted fans.

Our recommended number one plate mounted fan choice.

Flakt Woods reputation for only manufacturing the highest quality products is evident with this low cost range of Plate mounted Fans. Buying this fan gives you the confidence and satisfaction that comes with over 100 years of fan engineering experience.

  • Supplied fully assembled
  • Fully speed controllable
  • Can be used in any non hazardous environment
  • Suitable in temperatures from -40°C to 50°C
  • Low to medium air volumes
  • Low to medium static pressures
  • Available sizes 315mm – 500mm from stock
  • 560mm – 710mm made to order in 3 weeks
  • The grey coloured plate is manufactured from mild steel with a powder coat painted finish.
  • The impeller (the bit that goes around and moves the air) is manufactured from glass filled polypropylene and will stay intact up to temperatures of over 100°C
  • The motors are totally enclosed with class F insulation with protection to IP55. Single phase motors have overheat protection
Performance

The curve below shows the fans performance, which is 0.53m3/s at Free Air and peaks at 0.32m3/s at 72Pa, the fan can perform anywhere between these points and the red dot is shown as an example.





Accessories
  • ME1.1 electronic speed controller
  • MT1.1.5 transformer speed controller
  • 1PH Starter c/w overload
  • 315mm Louvre shutter
  • 355mm Louvre shutter, going up a shutter size makes it easier to fix to a wall
Technical Details

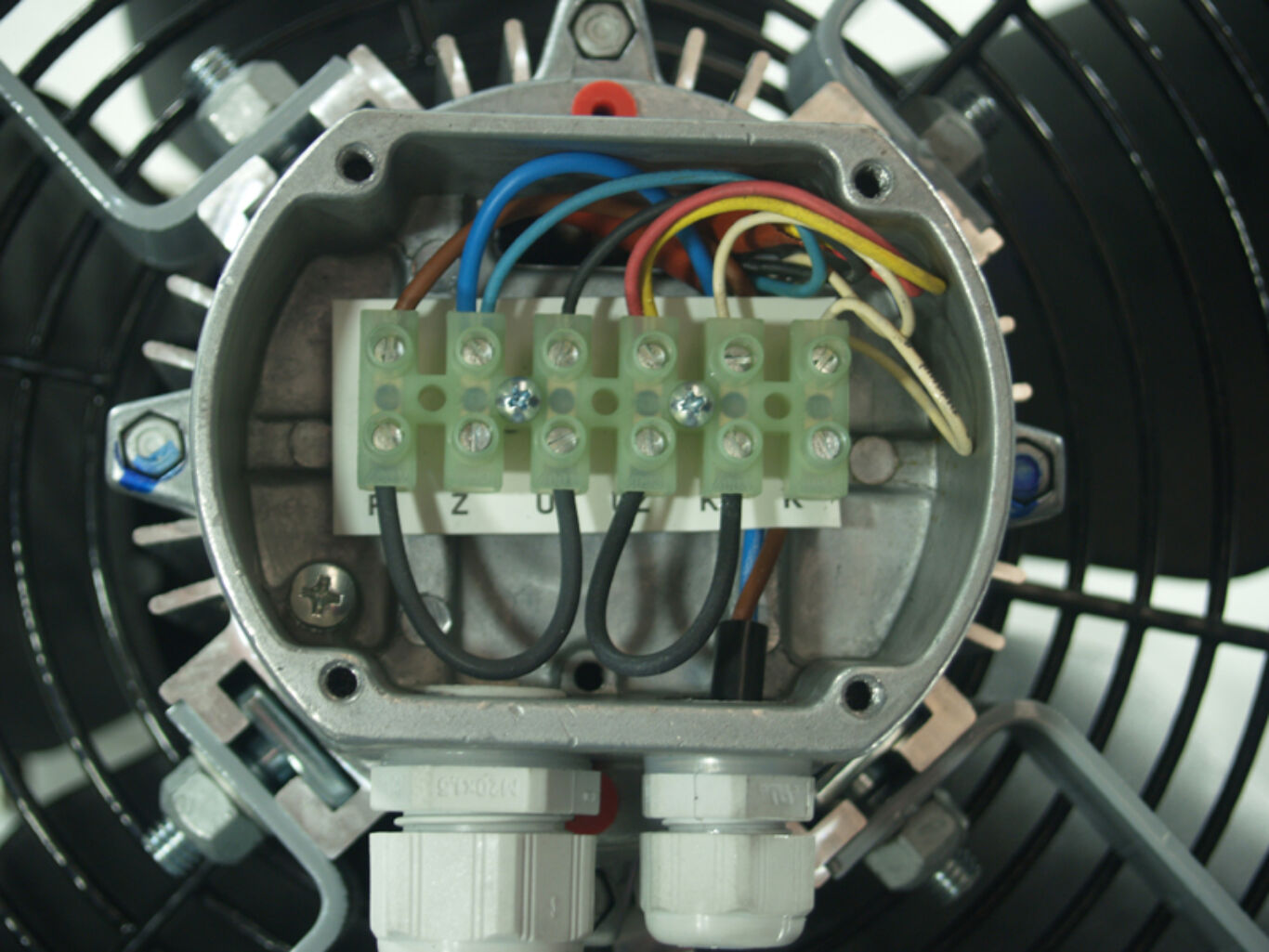

Wiring Diagrams

How loud is it?
  • 56dB(A) at 1.5 metres from the listener

  • 50dB(A) at 3 metres from the listener

Prices & Options
Code & Description Price
NH311413 : 2102/315/4/1Ph Plate Mounted Extract Fan by Flakt Woods £133.00 + VAT£159.60
