Espada ILC315 Replaces ILC/6P

Flakt Woods

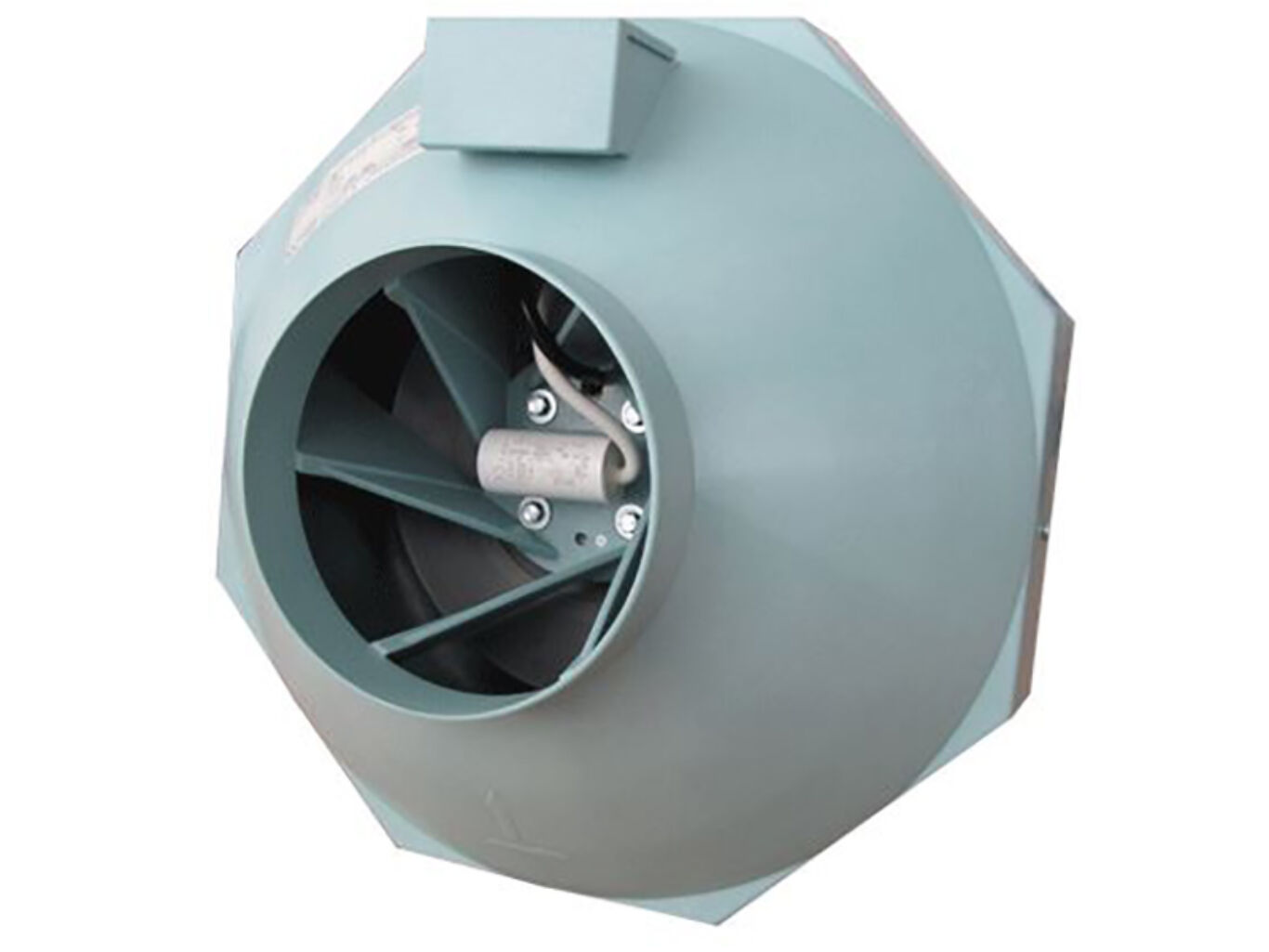

Espada ILC315 Replaces ILC/6P

An easy to install 1ph in-line fan from FlaktWoods. These fans have all the advantages of axial flow fans combined with the benefits of radial fan pressure

Diameters 100 mm to 315 mm in stock
Volumes Up to 0.48 m³/​s (1,730 m³/​h)
Pressures Up to 700 Pa (Static)
Impeller LB Backward Blade
Case Style Impact Resistant Plastic
Case Coating Inflammable Plastic

Can be installed horizontally or vertical
Suitable for mounting inside or outside
Temperature rating up to 70°C
All fans suitable for speed control

Please note the mounting foot needs to be ordered separately.

Prices & Options
Code & Description Price
tf315022 : Espada ILC315 Replaces ILC/6P £177.78 + VAT £213.34
We accept : Visa, MasterCard, Maestro & PayPal
