Overview

GV2 Ventilation Gas interlock Panel

This panel is designed to protect Kitchen staff from the dangers of Co2 fumes created when gas is used for cooking. It protects the staff by closing the Gas valve supplying the gas to the kitchen in the event of a lack of ventilation to extract the fumes; this is usually the result of an extract fan mechanical or electrical failure.

The GV2 complies with BS6173 – 2001 for Commercial Kitchens, where all Gas appliances are fitted with flame failure devices.

The panel is suitable for Pressure sensing (preferred) or current sensing

The Panel is suitable for use with any 1Phase speed controllable extract and supply fan up to a maximum full load of 6.7 amps per fan

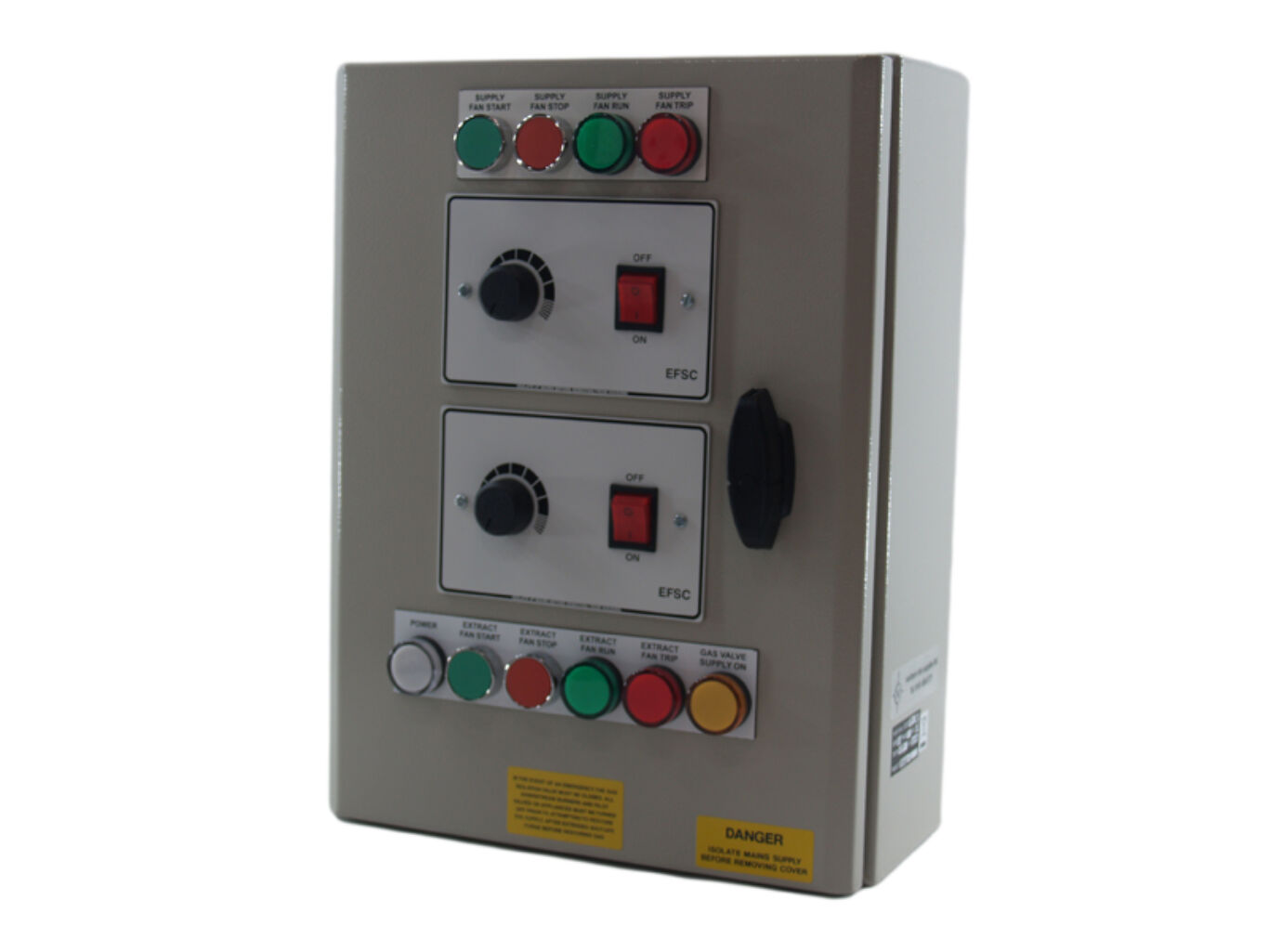

  • The panel comes complete with electronic speed controllers on the facia
  • The fascia has push button on/ off switches
  • Different coloured lamps mounted on the fascia indicate
  1. Green - Fans running
  2. Red – Fans failure
  3. Yellow – Gas on
  4. White – Power on

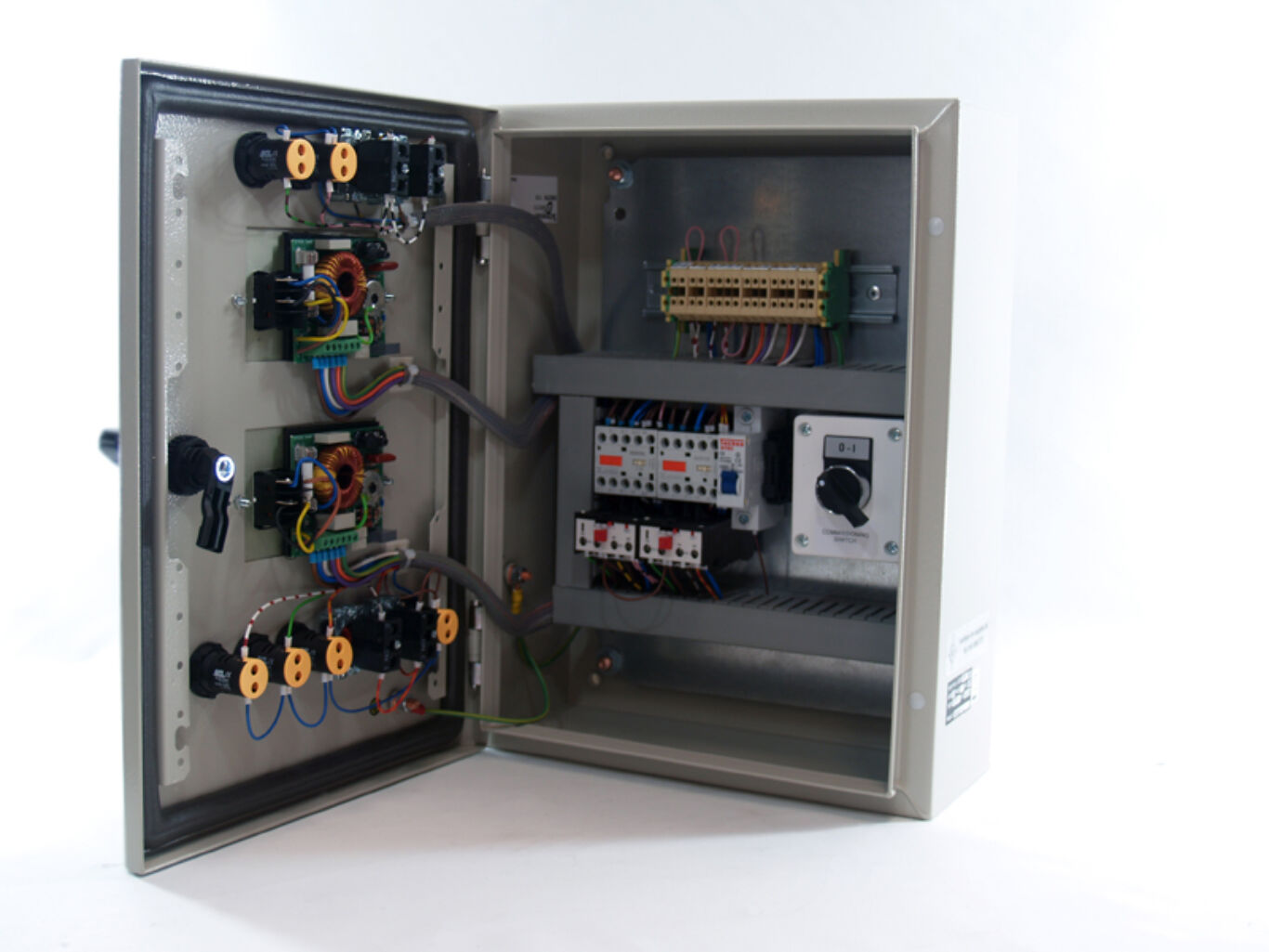

  • Inside the fans are protected via a contactor and overload

This panel is one of our 3 standard panels from stock.

We can manufacturer a custom panel to suit any requirement, just contact us with the details

Technical Details

Dimensions

300mm wide

400mm high

150mm deep

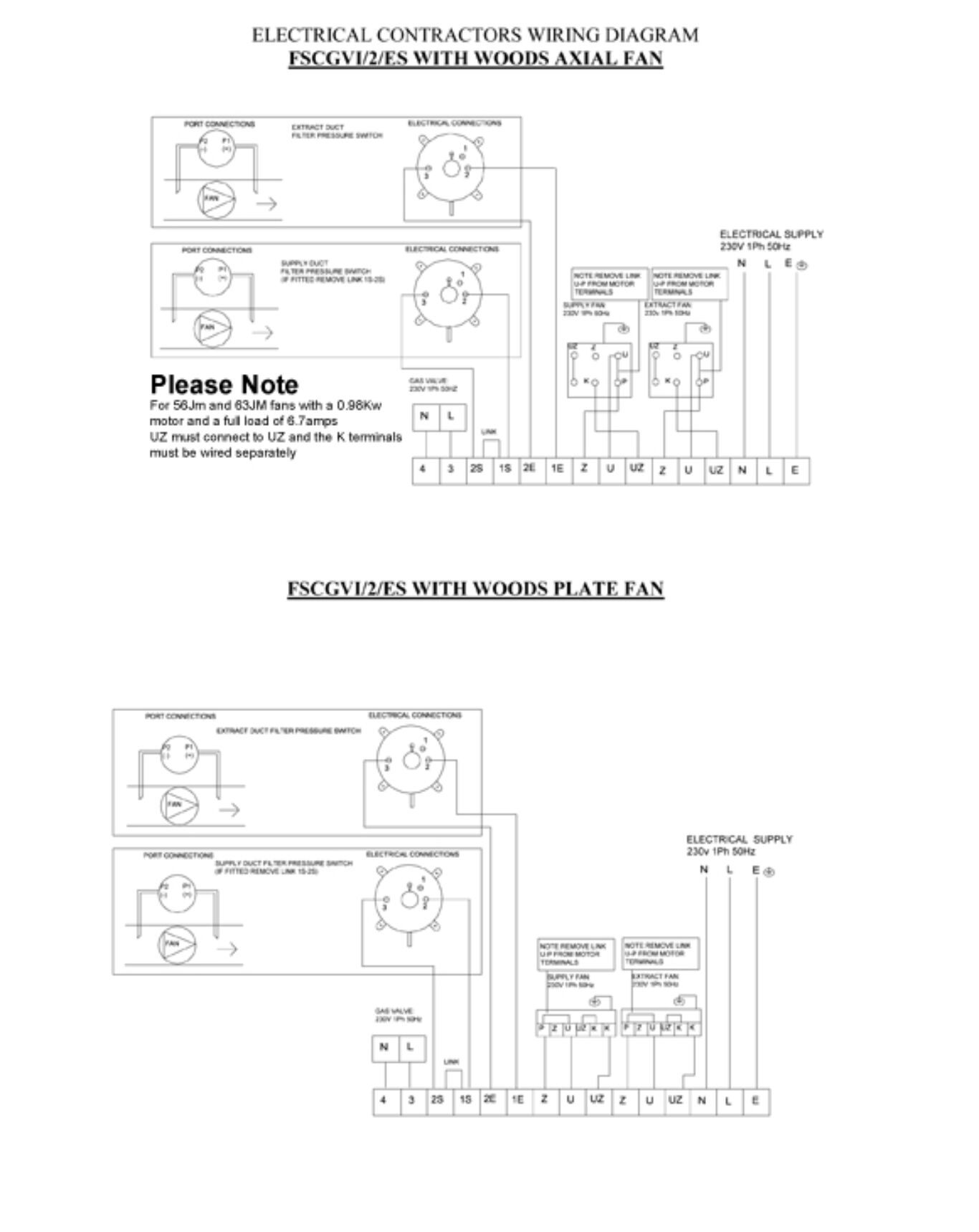

Wiring Diagrams

Prices & Options
Description Price
c/w 1 x current sensor £398.50 + VAT£478.20
c/w 2 x current sensors £426.00 + VAT£511.20
c/w 1 x pressure switch £393.00 + VAT£471.60
c/w 2 x pressure switches £415.00 + VAT£498.00
