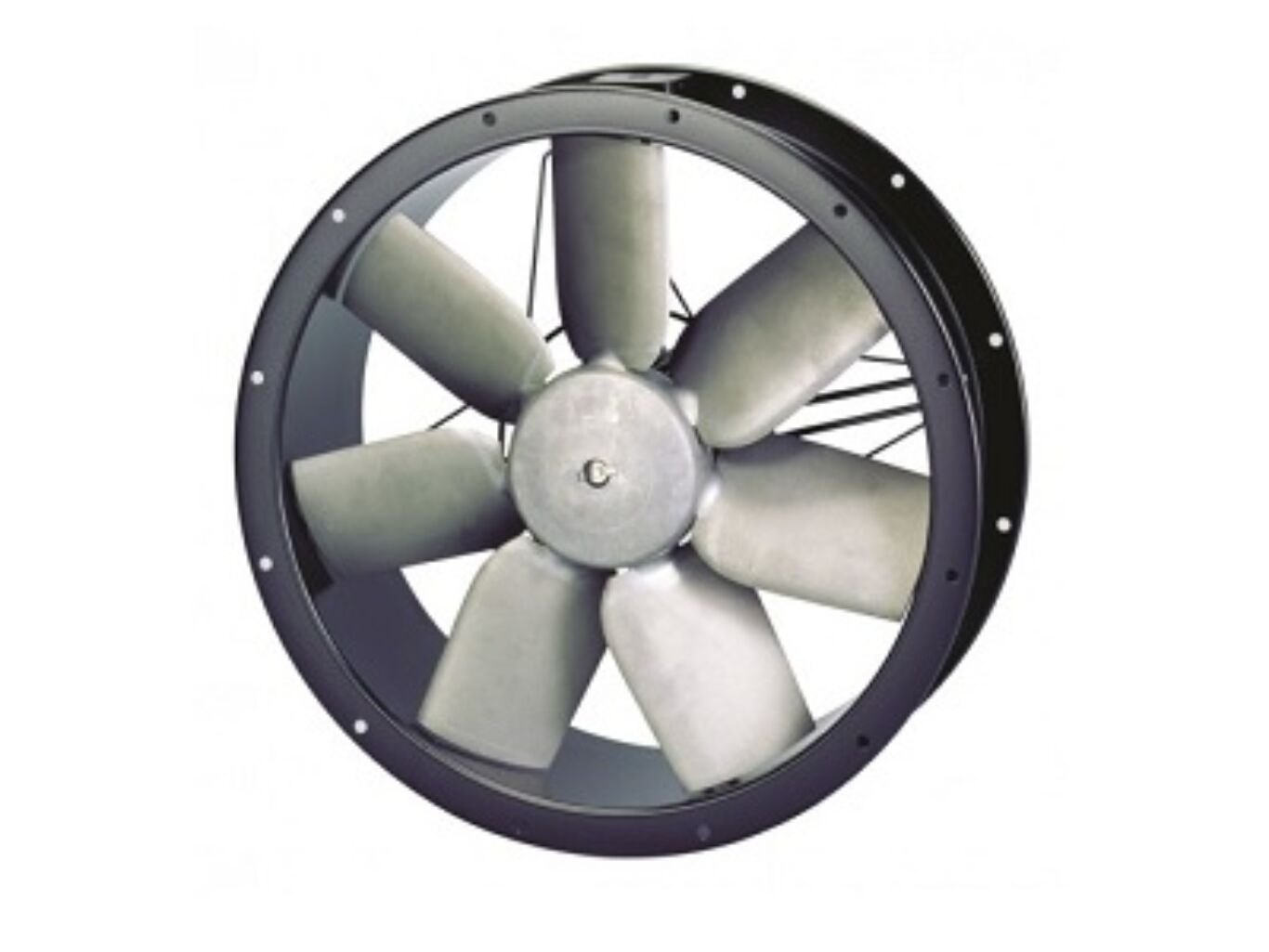

Soler & Palau TCBB/4 – 560/H cased axial flow extract fan previously known CA560/4/1B

Soler and Palau

Soler & Palau TCBB/4-560/H cased axial flow extract fan previously known CA560/4/1B

Manufactured by S&P (Soler and Palau) founded in Spain in 1951 by the engineers Eduard Soler and Josep Palau, this range of short cased axial is one of the the best performing on the market. Note, although previously badged up by Vent Axia in the UK it is a different size to the current range of Vent-Axia and Systemair fans. It is also widely used in the agricultural industry with a different coloured impellor.

Note motor size is 1.461kw and no speed control.

Single phase motor
250 – 630 Dia held in stock
All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.
Models 250, 315, 355 and 400: External rotor motor, IP44, Class F, thermal protection, working temperature from ‑40ºC to +40ºC.
Models 450, 500, 560, 630 and 6/710: IP65, Class F, thermal protection, working temperature from ‑40ºC to +70ºC.
Models 4/710 and 800: IP55, Class F, working temperature from ‑40ºC to +40ºC.
All motors are speed controllable by autotransformer except models /4 – 560H, /4 – 630, 710 and T/800.

Prices & Options
Code & Description Price
tcbb4560h : TCBB/4-560/H cased axial flow extract fan previously known CA560/4/1B £689.55 + VAT £827.46
We accept : Visa, MasterCard, Maestro & PayPal

Related Products
A.V. Mounts (Anti Vibration Mounts)
£17.78

A.V. Mounts (Anti Vibration Mounts) – load range per mount 5Kg ‑28Kg

Supplied in sets of 4 Anti Vibration Mounts (A.V. Mounts) attach to the bottom of Mounting Feet. A.V. Mounts are used to isolate the fan from the system to prevent vibration transfer through fixings or structures. A.V. Mounts can be used to isolate any products from the main system to prevent vibration transfer The main uses we ...

560mm dia Flange
£35.00

560mm dia Flange

560mm dia Flange used to bolt directly to the Fan, as part of a full ancillary package or for the fan to mount inline in ducting Can also be used to fix directly to a Silencer Can also be used to fix directly to ducting Hot dipped Galvanised after manufacture

560mm Mounting Feet
£33.34

560mm Mounting Feet

Supplied in pairs 560mm Mounting Foot, used to fit directly to the fan as part of a full ancillary package The Mounting Foot can be used to mount the fan in the horizontal or vertical position Usually used in conjunction with Anti Vibration Mounts Can also be used to fit directly to Silencers with or without Anti Vibration Moun ...

560mm Flexible Connection
£42.49

560mm Flexible Connection

560mm Flexible connection, used to fit to Flanges (with spigots), Silencers (with spigots) or spiral ducting. A flexible connection is used to isolate the fan from the system to prevent vibration transfer and helps minimise noise transfer through fixings or structures. It can also be used to simplify installation by bridging any small gaps b ...

CDA 560 x 1D straight through Silencer
£158.88

CDA 5601D straight through Silencer

560mm dia x 560mm long straight through silencer (generally reduces a fan noise level by 7 – 10dB (A)* Can be supplied to either bolt directly to any manufacturer of cased axial or with spigots to mount inline with ducting.The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car with n ...

CDA 560 x 2D straight through Silencer
£240.70

CDA 5602D straight through Silencer

560mm dia x 1120mm long straight through silencer (generally reduces a fan noise level by 10 – 13dB (A)* Can be supplied to either bolt directly to any manufacturer of cased axial or with spigots to mount inline with ducting. The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car wit ...

1 Phase on /off Starter c/w Overload
£103.33

1 Phase on /​off Starter c/​w Overload

Brook Crompton are one of the leading motor manufacturers in the UK, this Series 3000 single phase starter offers push button on and off, with overload protection. Overload protection gives extra safety by automatically stopping the fan when the full load current is exceeded, unlike fuse protection which is designed to protect life and u ...
