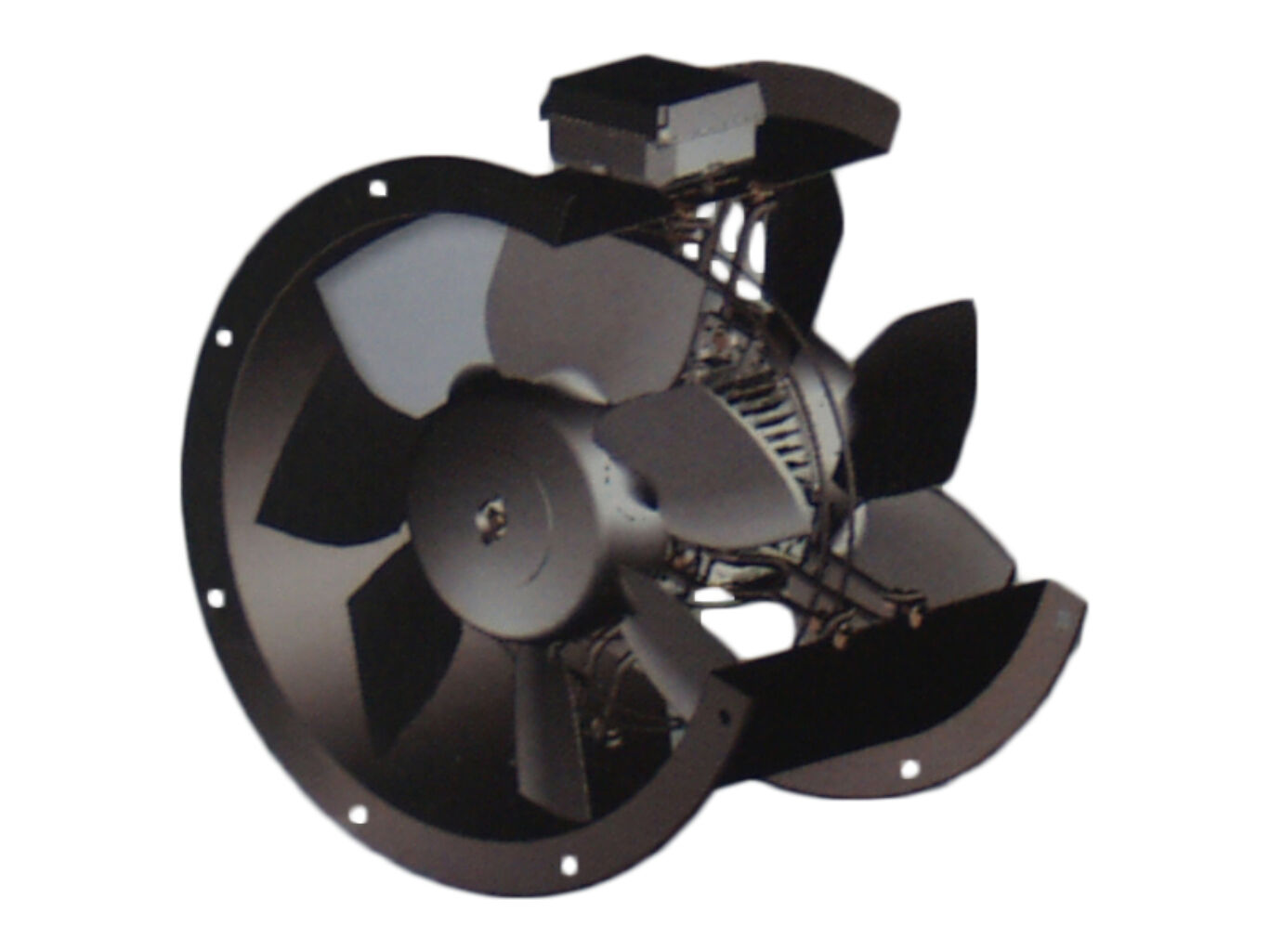

TCBBx2/​4 – 500 Soler and Palau (S&P) High Pressure 2 stage cased axial

Soler and Palau

TCBBx2/4-500 Soler and Palau (S&P) High Pressure 2 stage cased axial
TCBBx2/4-500 Soler and Palau (S&P) High Pressure 2 stage cased axial

Manufactured by S&P (Soler and Palau) founded in Spain in 1951 by the engineers Eduard Soler and Josep Palau, this range of painted short cased 2 stage axials are possibly the best performing on the market. This range of Soler and Palau products were formally distributed through Vent Axia known as turbo props”. This range of fans offers the best combination of performance and price available.

Contra rotating: High Pressure

Contra rotating system with two complementary impellers allowing the duplication of the pressure with the same air volume.

Impeller dynamically balanced

Impeller dynamically balanced according to ISO 1940 standard, giving vibration free operation.

Corrosion resistance

Rolled steel casings and motor support protected by cataforesis primer and black polyester paint finish. Stainless steel screws.

Terminal Box

Wiring terminal box with cable gland PG-11

All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.

Available with single or three phase 4 poles motors.

Motors

All the motors are IP65, Class F insulation (1) equipped with thermal protection.

Single phase motors are variable voltage.

Three phase motors suitable for inverter control.

Electrical supplies

Single phase 230V-50Hz (Capacitor located inside the wiring terminal box)

Three phase 230/400V-50Hz

Working temperatures from ‑40°C up to 70°C

The curve below shows the fan performance which is 2.36 m³/​s @ free air and it’s peak performance is 1.917 m³/​s @ 400pa. The fan can perform anywhere between these 2 points but we would not recommend slelecting the fan to perform beyond the max point as indicated below by a blue dot

TCBBx2/4-500 performance
TCBBx2 technical details
TCBBx2 dimensions

70.5dB(A) at 3 metres from the listener

Prices & Options
Code & Description Price
TCBBx2/4-500 : TCBBx2/4-500 Soler and Palau (S&P) High Pressure 2 stage short cased axial £995.65 + VAT £1,194.77
