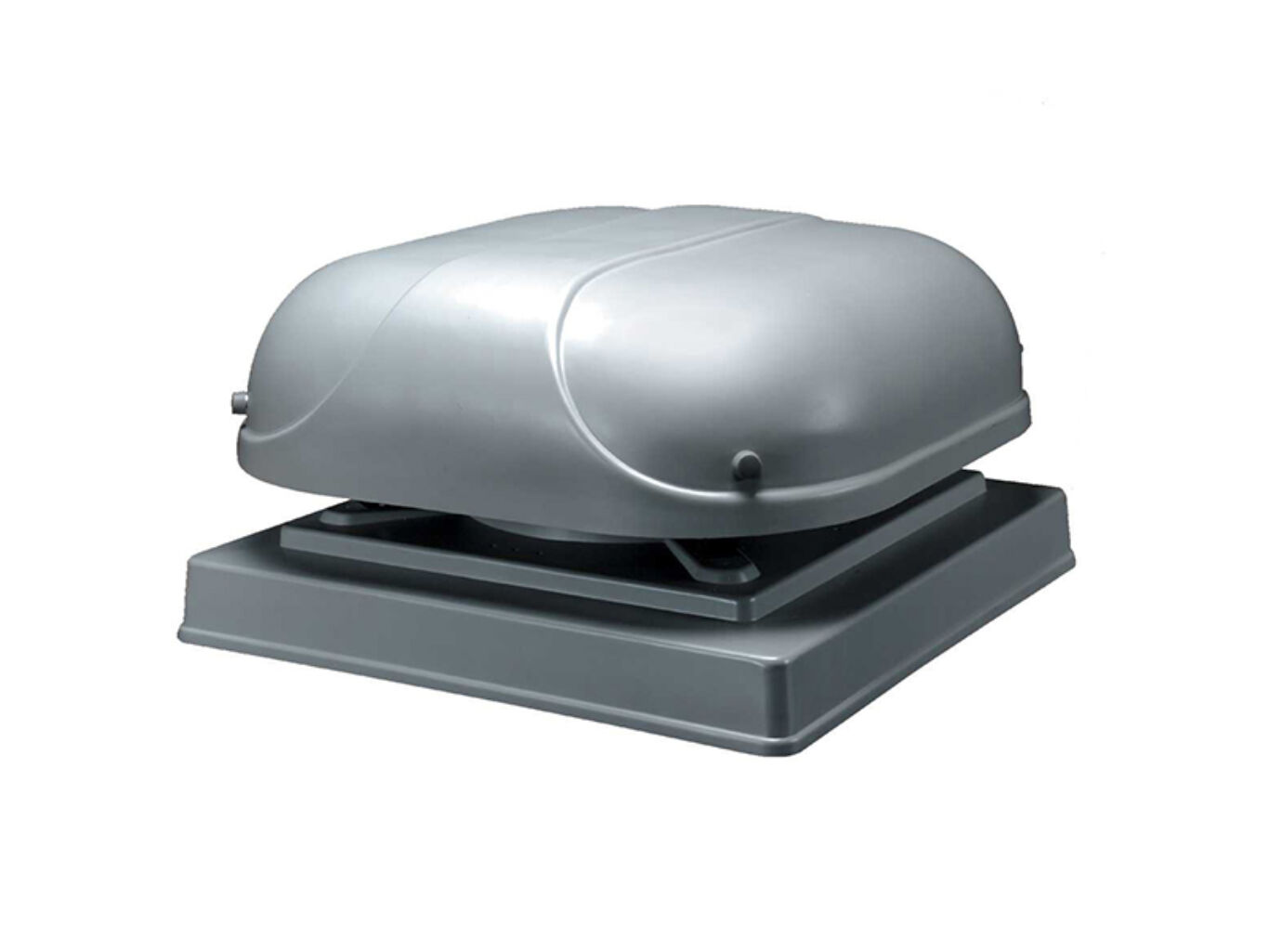

Vent Axia VSR56014 1ph Roof Mounted Axial Fan + Cowl

Vent-Axia

Vent Axia VSR56014 1ph Roof Mounted Axial Fan + Cowl
Overview

High performance roof sickle fan
Fully assembled cowl.
Optional backdraught shutters and birdguard
Moulded from recyclable polymeric material, optional coloured units available
One shot die cast aluminium impeller dynamically balanced for smooth operation
All sizes resistant to UV light
All models speed controllable and can be wired for reverse running
Sizes 315 - 710 are protected to IP54, against dust and moisture complying with BS EN 60529.
Motor insulation to Class ‘F’ (from -40°C to + 70°C).
Speed controlled sizes 450 to 710, 6 & 8 pole motors are only suitable for operating temperatures of up to 40°C.
Thermal Overload Protection for motor protection
Suitable for flat or inclined roofs (max. angle 30°)
VSR315-560 1ph in stock
2 Year Guarantee

Fan & cowl are supplied separately to assist with transportation.

Performance

The curve below shows the fans performance, which is 2.33m3/s at Free Air and peaks at 0.80m3/s at 225pa, the fan can perform anywhere between these points.

Technical Details

Dimensions

Wiring Diagrams

Prices & Options
Code & Description Price
vsr56014 : Vent Axia VSR56014 1ph Roof Mounted Axial Fan + Cowl £688.16 + VAT£825.79
