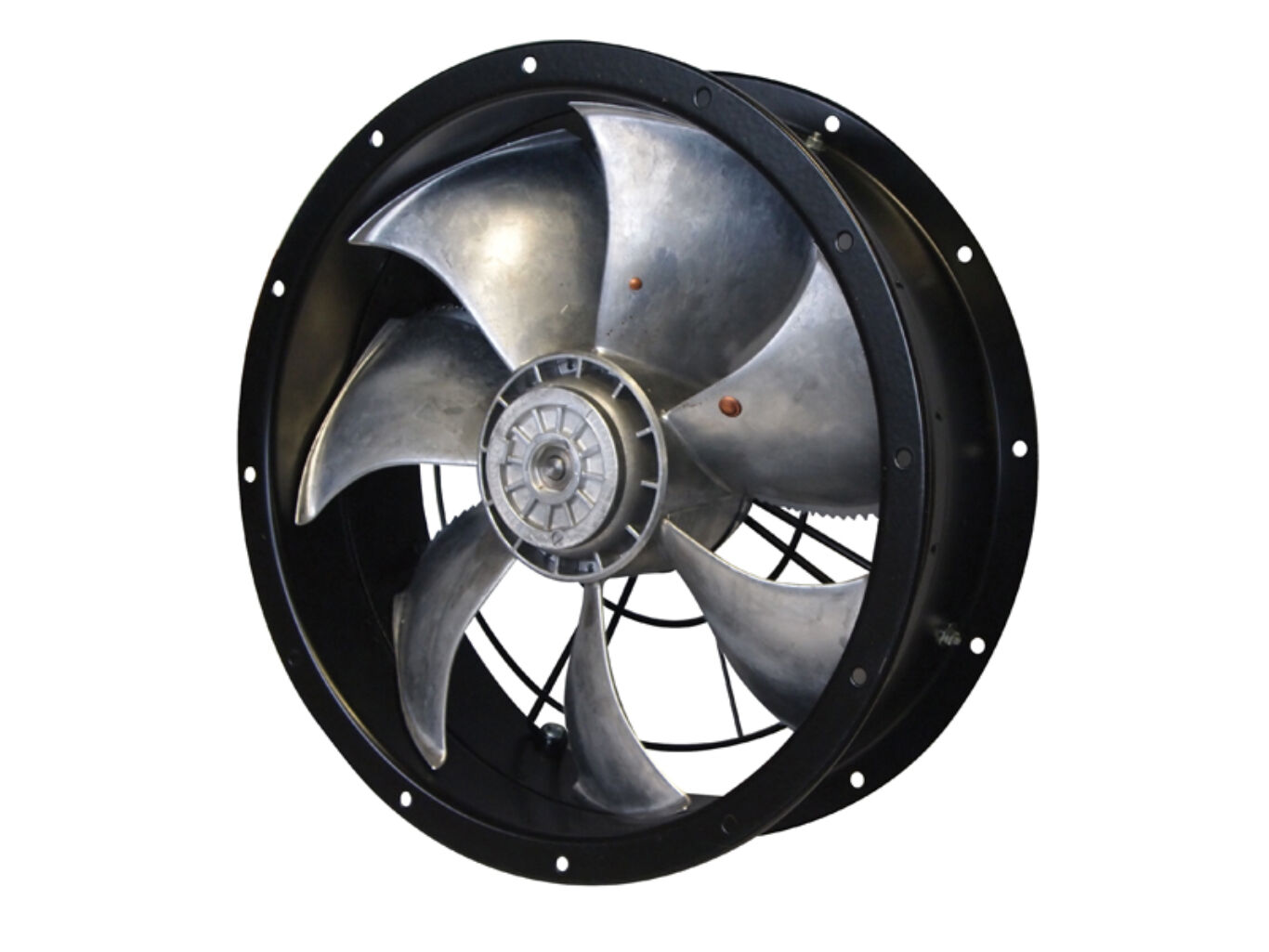

VSC56014 short cased axial flow extract fan replaces ZSC560-41

Vent-Axia, Systemair, Ziehl Abegg

VSC56014 short cased axial flow extract fan replaces ZSC560-41
Overview

Manufactured by Ziehl Abegg and distributed by Vent Axia and Systemair, this is one of the most popular short cased axial on the market today. This fan has a sickle blade and offers improved performance over the aerofoil blade. Ziehl Abegg are one of, if not the biggest external rotor motor manufacturers in the world, they have over 100 years of engineering experience behind them, which gives you the confidence. If a low cost painted finish fan is your choice this is among the best available.

Supplied fully assembled
Fully speed controllable
Can be used in any non hazardous environment
Suitable to run in temperatures from -40°C to up to 70°C in some instances
Low to medium air volumes
Low to medium static pressures
Available sizes 315mm – 630mm 1ph from stock
Tough epoxy paint finish
Die cast aluminium impellers (the bit that goes around)
Motor class F insulation with protection to IP54

All fans reversible for supply or extract . If reversed some performance will be lost.

Technical Details

Dimensions

Wiring Diagrams

Prices & Options
Code & Description Price
vsc56014 : VSC56014 short cased axial flow extract fan replaces ZSC560-41 £516.03 + VAT£619.24
