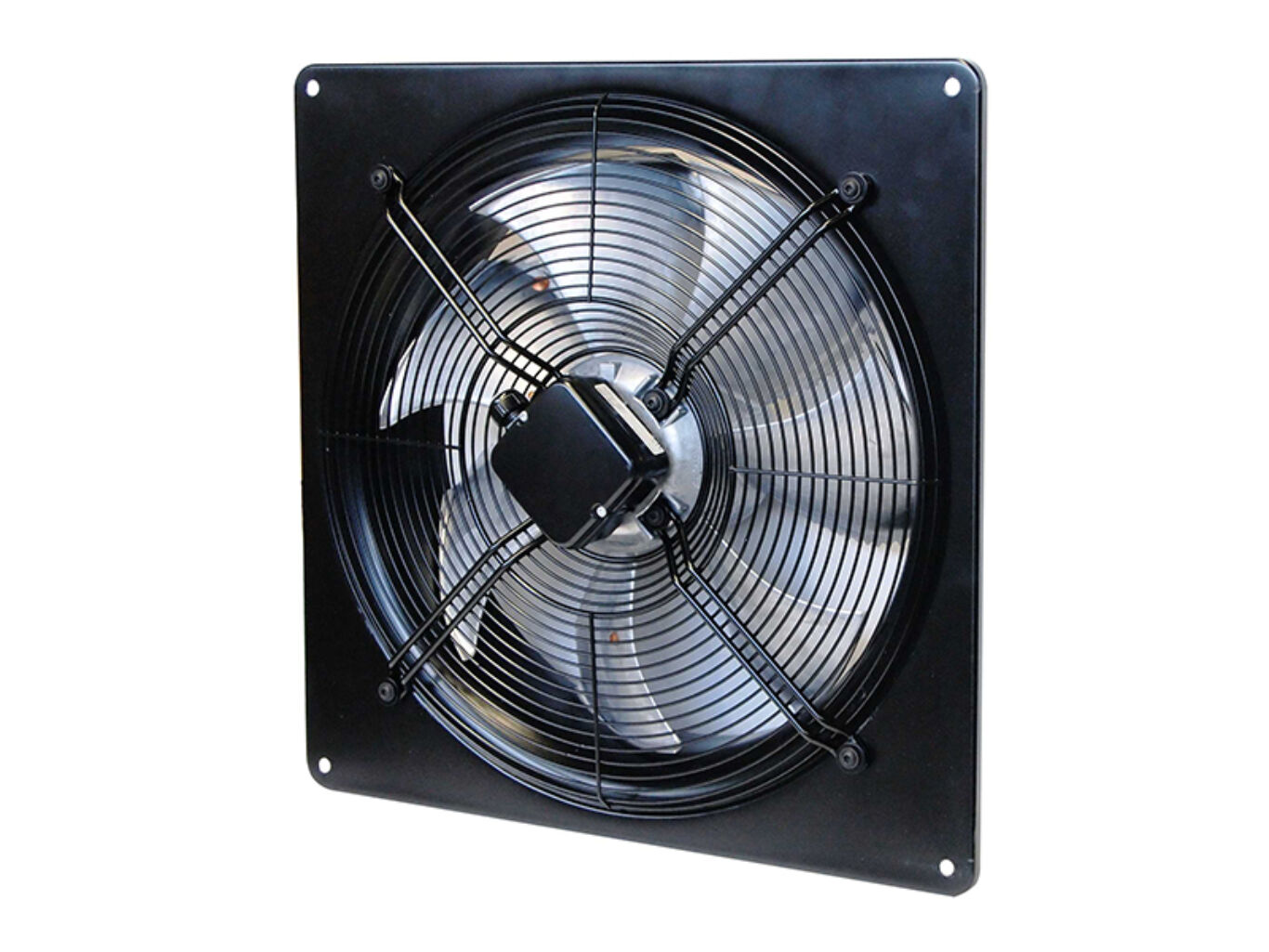

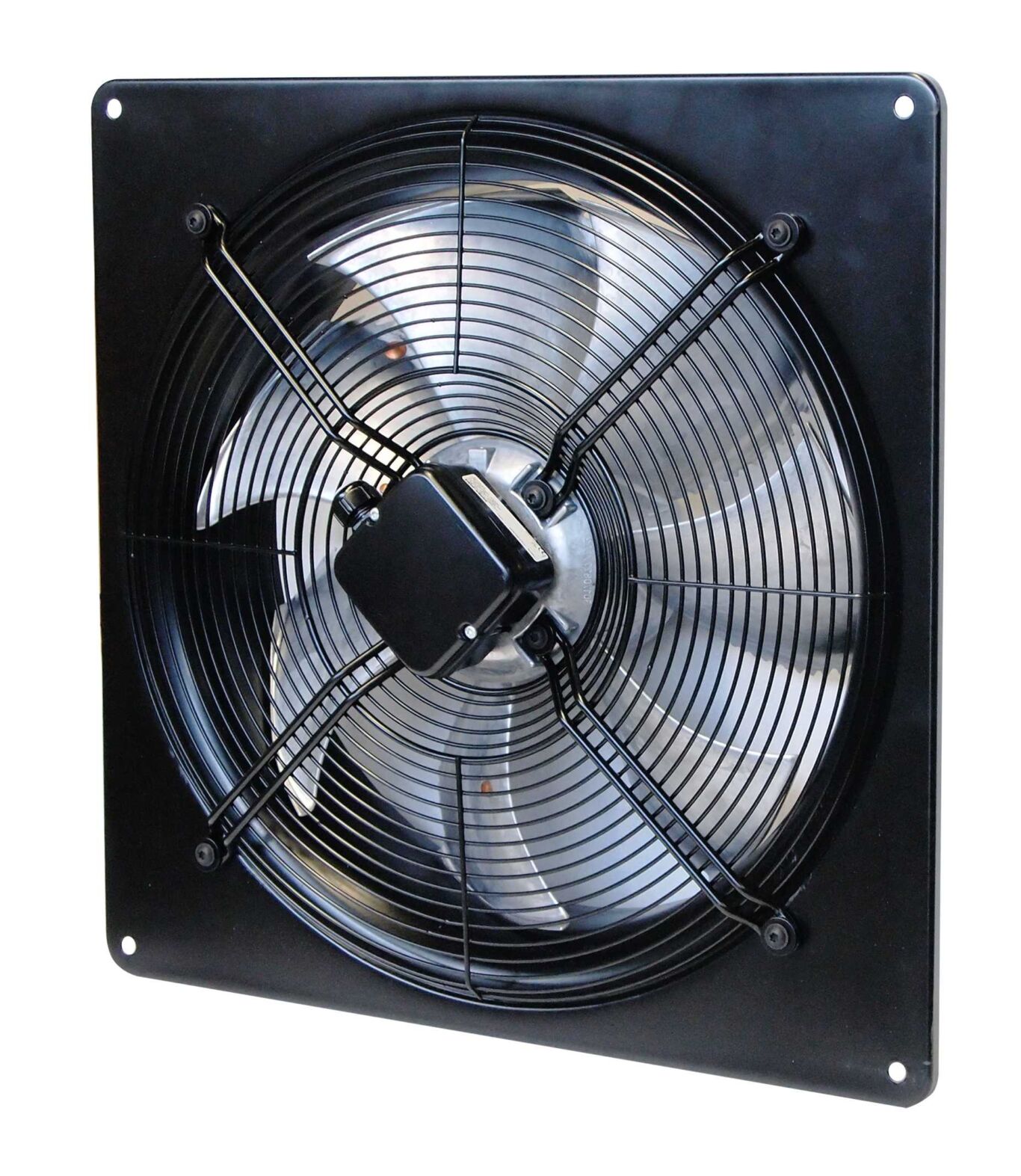

VSP25014 Plate mounted extract fan replaces ZSP250-41

Systemair, Vent-Axia, Ziehl-Abegg

VSP25014 Plate mounted extract fan replaces ZSP250-41
VSP25014 Plate mounted extract fan replaces ZSP250-41

Manufactured by Ziehl Abegg and distributed by Vent Axia and Systemair, this is one of the most popular plate axials on the market today. This fan has a sickle blade and offers improved performance over the aerofoil blade. Ziehl Abegg are one of, if not the biggest external rotor motor manufacturers in the world, they have over 100 years of engineering experience behind them, which gives you the confidence. If a low cost painted finish fan is your choice this is among the best available.

Supplied fully assembled
Fully speed controllable
Can be used in any non hazardous environment
Suitable to run in temperatures from ‑40°C to up to 70°C in some instances
Low to medium air volumes
Low to medium static pressures
Available sizes 250mm – 630mm 1ph from stock
Tough epoxy paint finish
Die cast aluminium impellers (the bit that goes around)
Motor class F insulation with protection to IP54


The curve below shows the fans performance, which is 0.27 m³/​s at Free Air and peaks at 0.22 m³/​s at 25Pa, the fan can perform anywhere between these points and the red dot is shown as an example

Prices & Options
Code & Description Price
vsp25014 : VSP25014 Plate mounted extract fan replaces ZSP250-41 £137.66 + VAT £165.20
