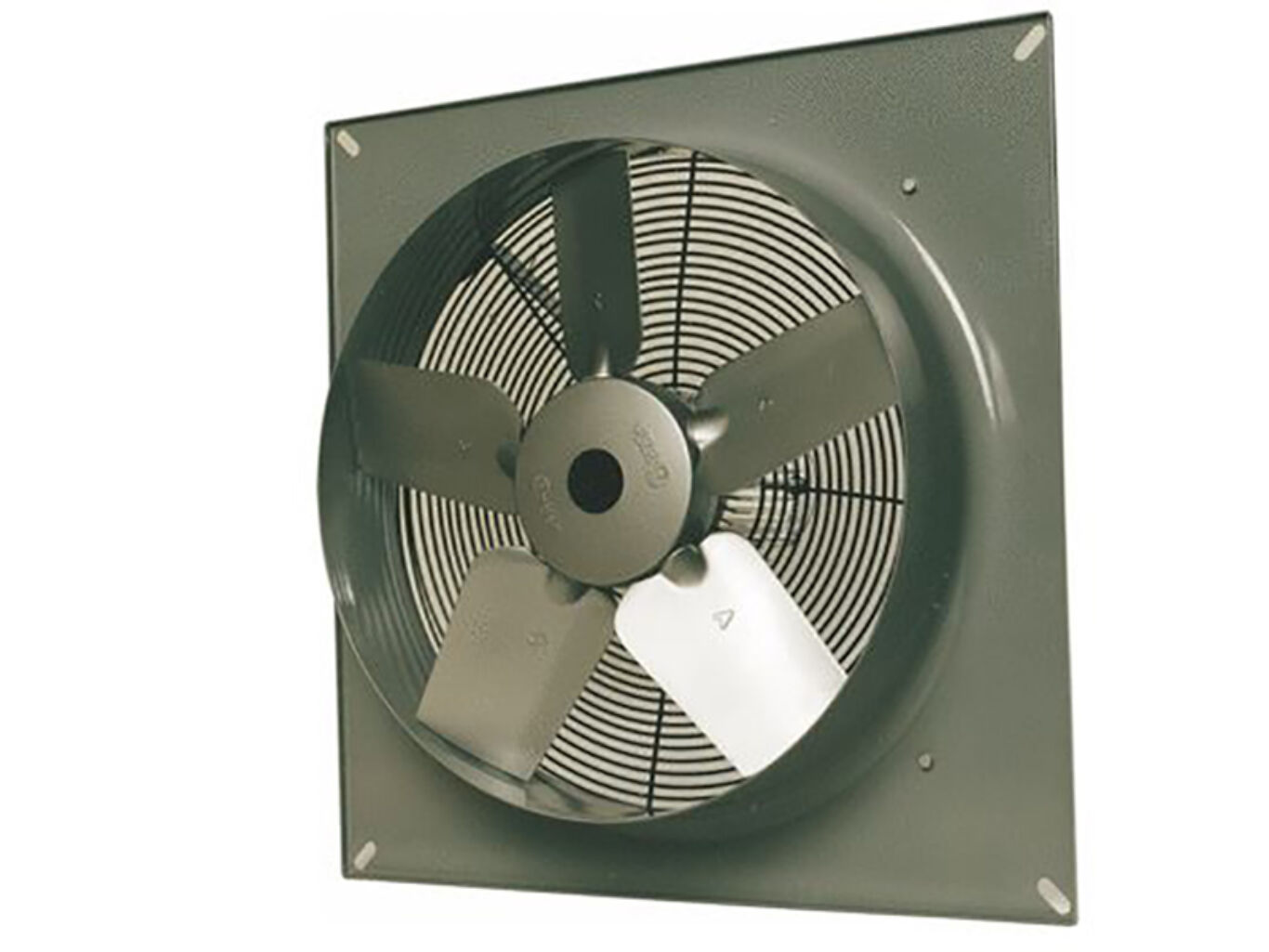

35JMP/16/4/5/24 FlaktWoods Plate Axial was DT355410

Flakt Woods

35JMP/16/4/5/24 FlaktWoods Plate Axial was DT355410

Features of another great plate axial from FlaktWoods

Diameters 315 mm to 630 mm
Volumes Up to 4.1 m³/​s (14,750 m³/​h)
Pressures Up to 175 Pa (Static)
Impeller Fixed Pitch, JM Aerofoil Case Style

Supplied fully assembled
The plate is made from steel and powder coated RAL 7001
Installation can be either horizontal or vertical
The fan can be mounted inside or outside
Operating temperature range is ‑40°C to + 70°C
All offered fans are suitable for speed control

Prices & Options
Code & Description Price
ep355410 : 35JMP/16/4/5/24 FlaktWoods Plate Axial was DT355410 £449.45 + VAT £539.34
