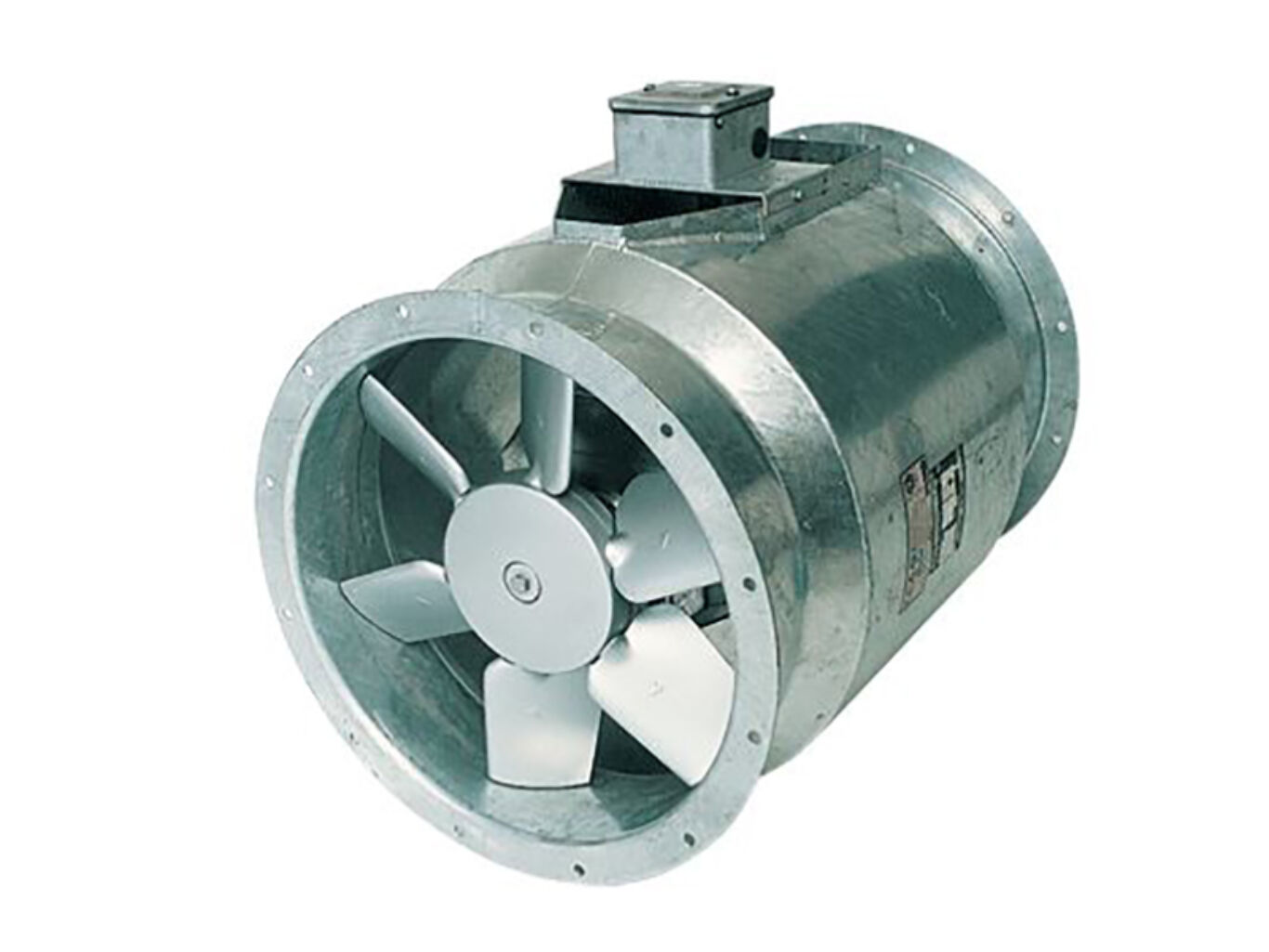

63JM.BIF (200)/20/4/6/30 3PH Woods Bifurcated Fan

Flakt Woods

63JM.BIF (200)/20/4/6/30 3PH Woods Bifurcated Fan

Another great fan from Woods Air Movement, Bifurcated (sometimes shortened to Bifs or Bif Fans) are inline axial flow fans where the motor has been taken out of the airstream. This allows the fan to operate at higher temperatures.

Available sizes 400mm – 630mm from stock
800mm and 1000mm ring for availability
The Casings are spun sheet steel, then hot dipped galvanised to give a finish highly resistant to corrosion and can be mounted external and internal
The impeller (the bit that goes around and moves the air) is manufactured die cast aluminium
The motors are totally enclosed with class F insulation with protection to IP55.
The fans can be installed horizontal or vertical
They can be run up to 200Deg Continuous temperature
All suitable for speed control via inverter

Prices & Options
Code & Description Price
jn305003 : 63JM.BIF (200)/20/4/6/30 3PH £2,391.84 + VAT £2,870.20
We accept : Visa, MasterCard, Maestro & PayPal

Related Products
A.V. Mounts (Anti Vibration Mounts)
£17.78

A.V. Mounts (Anti Vibration Mounts) – load range per mount 5Kg ‑28Kg

Supplied in sets of 4 Anti Vibration Mounts (A.V. Mounts) attach to the bottom of Mounting Feet. A.V. Mounts are used to isolate the fan from the system to prevent vibration transfer through fixings or structures. A.V. Mounts can be used to isolate any products from the main system to prevent vibration transfer The main uses we ...

630mm Mounting Feet
£42.00

630mm Mounting Feet

Supplied in pairs 630mm Mounting Foot, used to fit directly to the fan as part of a full ancillary package The Mounting Foot can be used to mount the fan in the horizontal or vertical position Usually used in conjunction with Anti Vibration Mounts Can also be used to fit directly to Silencers with or without Anti Vibration Moun ...

630mm dia Flange
£39.00

630mm dia Flange

630mm dia Flange used to bolt directly to the Fan, as part of a full ancillary package or for the fan to mount inline in ducting Can also be used to fix directly to a Silencer Can also be used to fix directly to ducting Hot dipped Galvanised after manufacture

630mm Flexible Connection
£50.54

630mm Flexible Connection

630mm Flexible connection, used to fit to Flanges (with spigots), Silencers (with spigots) or spiral ducting. A flexible connection is used to isolate the fan from the system to prevent vibration transfer and helps minimise noise transfer through fixings or structures. It can also be used to simplify installation by bridging any small gaps b ...

CDA 630 x 1D straight through Silencer
£199.30

CDA 6301D straight through Silencer

630mm dia x 630mm long straight through silencer (generally reduces a fan noise level by 7 – 10dB (A)* Can be supplied to either bolt directly to any manufacturer of cased axial or with spigots to mount inline with ducting.The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car with n ...

CDA 630 x 2D straight through Silencer
£271.34

CDA 6302D straight through Silencer

630mm dia x 1260mm long straight through silencer (generally reduces a fan noise level by 10 – 13dB (A)* Can be supplied to either bolt directly to any manufacturer of cased axial or with spigots to mount inline with ducting.The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car with ...

3 Phase on off Starter c/w Overload
£98.89

3 Phase on off Starter c/​w Overload

Brook Crompton are one of the leading motor manufacturers in the UK, this Series 3000 single phase starter offers push button on and off, with overload protection. Overload protection gives extra safety by automatically stopping the fan when the full load current is exceeded, unlike fuse protection which is designed to protect life and u ...
