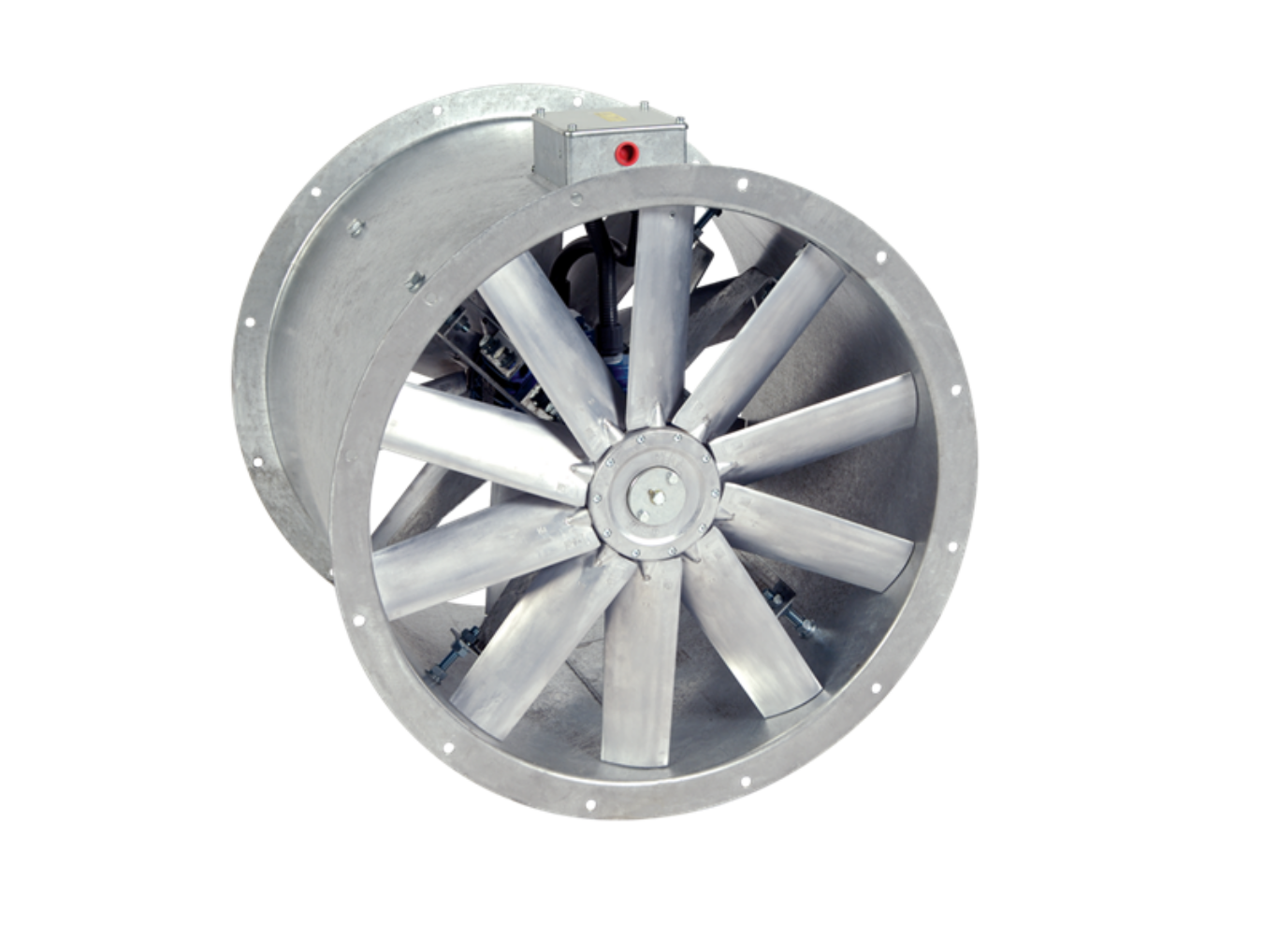

ELTA FANS TF500/4 – 1AC TURBOFLOW 2 STAGE AXIAL FAN
Elta
Prices & Options
The Elta Fans Turboflow is a 1phase two stage axial fan specifically developed for high pressure requirements not suited to single stage fans. The fans have been constructed from a single sheet of steel, with both motors and axial impellers mounted within the length of the unit casing.
Features
Available in 4 sizes 500÷560÷630 all stocked
The fan can be installed at any angle
Suitable for internal and external use
Fans are suitable for operating temperatures between ‑20°C and +70°C fixed speed
Adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium
Can be used to replace an SCPP500/4 – 1 COMPACT 2 Stage Axial Fan, the fan casing will be 50mm Longer
64 dB(A) @ 3m
| Code & Description | Price | |
|---|---|---|
| TF500/4-1AC : ELTA FANS TF500/4-1AC TURBOFLOW 2 STAGE AXIAL FAN | £1,044.60 + VAT £1,253.52 | |
We accept :
15% discount with code ‘welcnfan1’
Note: Code can only be used once per customer. Discount codes are entered after selecting shipping method.
Need it today? We offer same day deliveries
Same day deliveries locally & nationwide (UK mainland only). Price on request — Send message with your order, or call 0161 864 1777.
