Flakt Woods 315mm diameter x 900mm Long Circular Silencer BDER-30 – 031-090

Elta, Flakt Woods, Helios, Soler and Palau, Systemair, Vent-Axia, Ziehl-Abegg

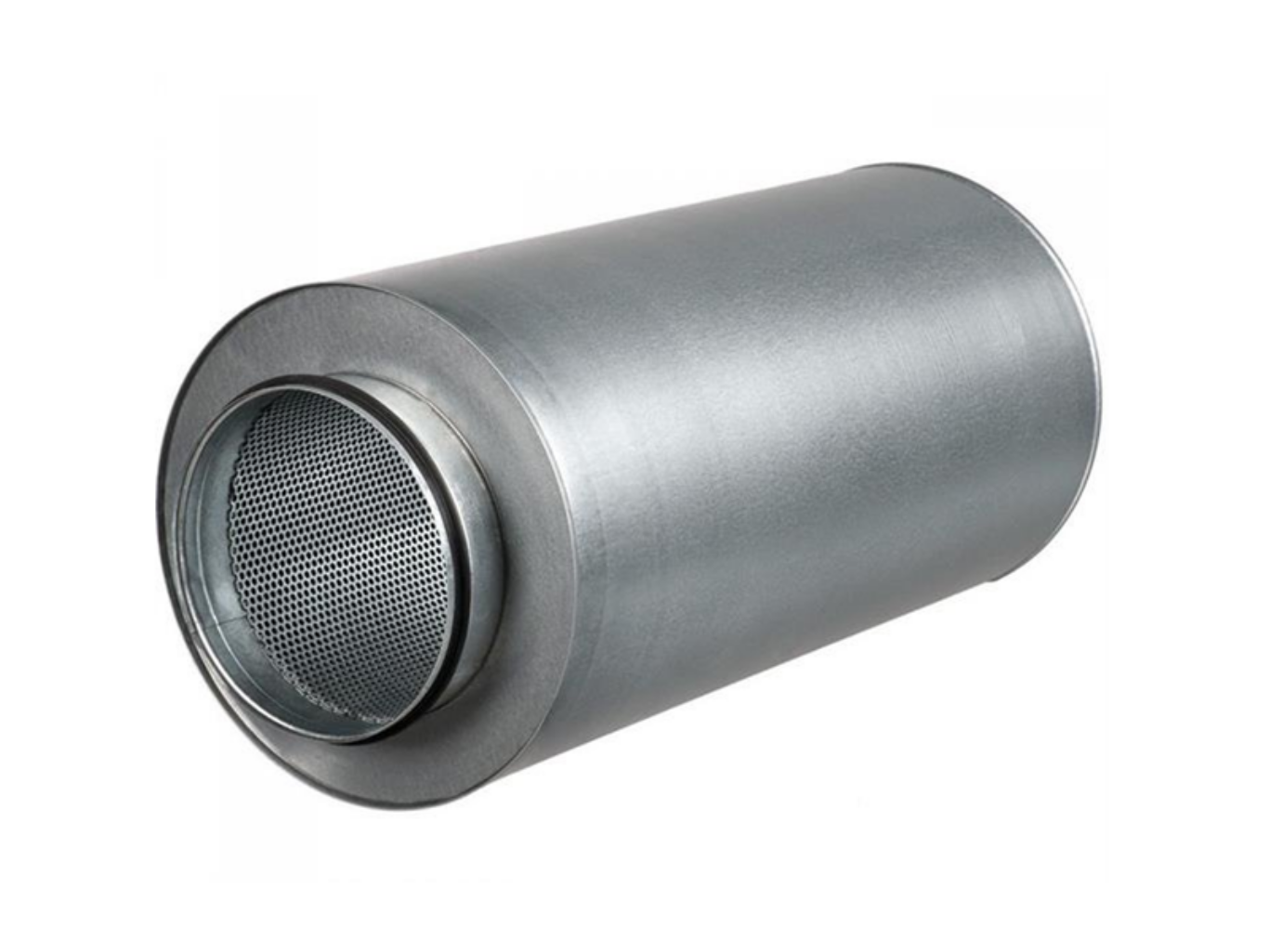

Flakt Woods 315mm diameter x 900mm Long Circular Silencer BDER-30-031-090

The effective and economic solution for sound attenuation in circular duct systems.

315mm diameter x 900mm long duct mounted extractor fan silencer. Can be used with manufacturer of fan with spigots to mount inline with ducting.

The addition of this silencer to a system will act in the same way a silencer does on a car, so if you’ve ever heard a car with no silencer fitted, this gives you an idea of the impact a silencer can have on a system.

Please Note — for a straight through silencer to work to have the maximum impact on a system, a silencer should be fixed either side of the fan, this will give 3 benefits to the overall noise level of the system.

1. System side (usually the noise level inside a building) noise level is reduced

2. Atmospheric side (usually the noise level outside a building) noise level is reduced

3. The breakout from the fan is reduced, this could be a big factor depending where the fan is fitted, such as a false ceiling in a class room or office area.

We offer Fast Clamps to connect the fan spigot and silencer spigot together, please see our FC range for prices.

Available sizes 100mm — 500mm

*Noise is a complicated medium to get right, if in doubt or you have specific target levels to achieve, please contact us via any means you feel comfortable with and we’ll find a solution to your problem

Spigot Diameter: 315mm

Silencer Length: 900mm (excluding spigots)

Exact match for fans with 315mm diameter spigots

Pressure losses are no higher than those that are generated by a comparable section of straight ducting

Ideal for Cross Talk Elimination (stops noise travelling though ventilation systems from room to room)

Suitable to use with Flexible or Spiral Ducting

Constructed from Sheet steel with internal tubular liner enclosed by a thick layer of mineral wool sound absorbing material

Flakt Woods 315mm diameter x 900mm Long Circular Silencer BDER-30-031-090
Prices & Options
Code & Description Price
SL000508 : Flakt Woods 315mm diameter x 900mm Long Circular Silencer BDER-30-031-090 £87.78 + VAT £105.34
We accept : Visa, MasterCard, Maestro & PayPal
Downloads

Related Products
FC315 Fast Clamp also known as FK315 and VBM315
£31.50

FC315 Fast Clamp also known as FK315 and VBM315

The Fast Clamp facilitates quick and easy installation and removal for maintenance of same duct size in-line fans. The clamp is made from galvanised steel and is joined together by two screws. The clamp will also help reduce any fan vibration being transferred to the duct system when correctly fitted. The clamp can also be used to connect other sys ...
