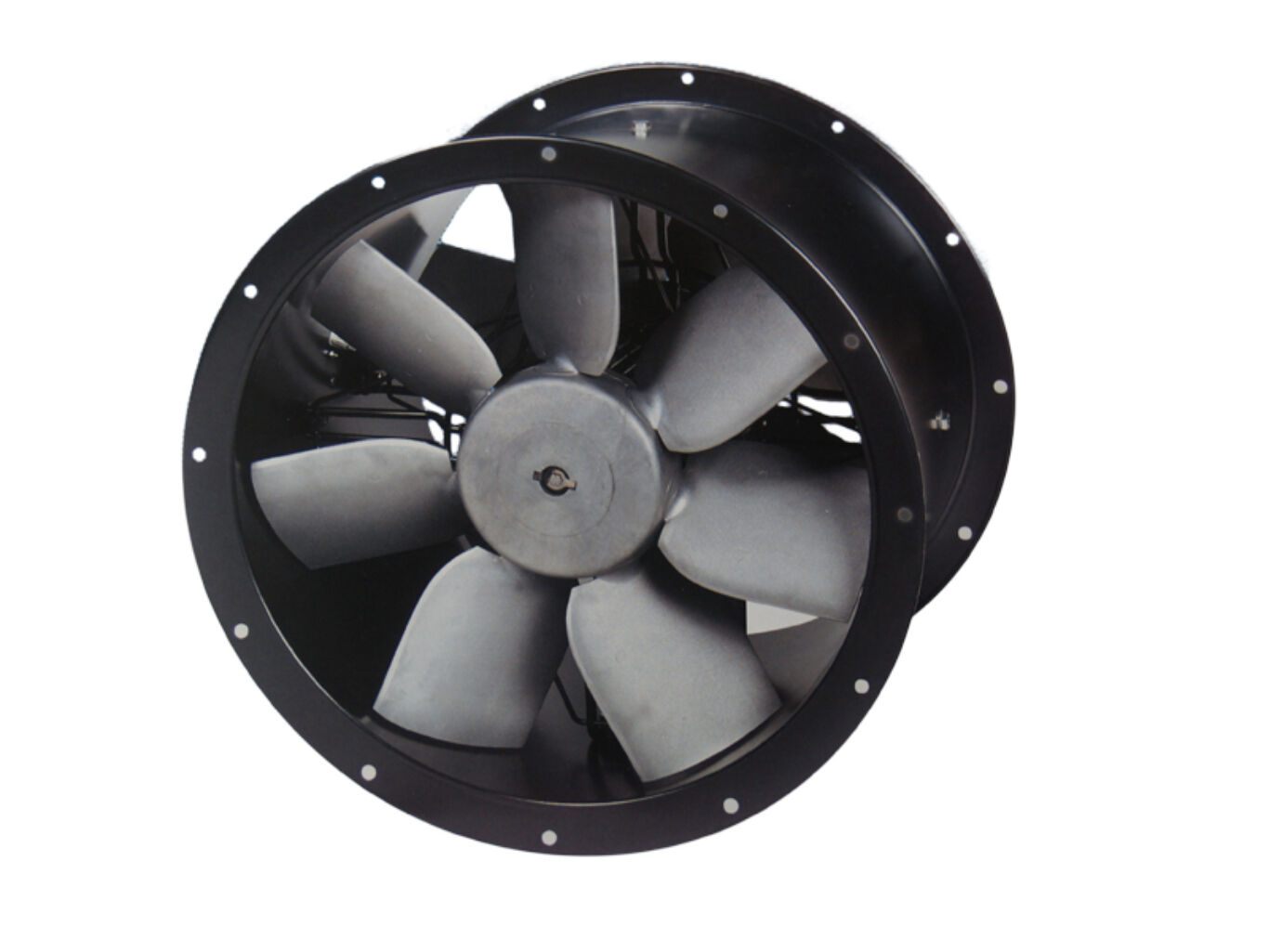

TCBBx2/4-560 Soler and Palau (S&P) High Pressure 2 stage short cased axial also known as TP56014 by Vent Axia
Manufactured by S&P (Soler and Palau) founded in Spain in 1951 by the engineers Eduard Soler and Josep Palau, this range of painted short cased 2 stage axials are possibly the best performing on the market. This range of Soler and Palau products were formally distributed through Vent Axia known as “turbo props”. This range of fans offers the best combination of performance and price available.
Contra rotating: High Pressure
Contra rotating system with two complementary impellers allowing the duplication of the pressure with the same air volume.
Impeller dynamically balanced
Impeller dynamically balanced according to ISO 1940 standard, giving vibration free operation.
Rolled steel casings and motor support protected by cataforesis primer and black polyester paint finish. Stainless steel screws.
Wiring terminal box with cable gland PG-11
All models are supplied with pre-wired wiring junction box located on the outside of the fan casing for easy wiring access.
Available with single or three phase 4 poles motors.
All the motors are IP65, Class F insulation (1) equipped with thermal protection.
Single phase motors are variable voltage.
Three phase motors suitable for inverter control.
Single phase 230V-50Hz (Capacitor located inside the wiring terminal box)
Three phase 230/400V-50Hz
Working temperatures from -40°C up to 70°C
The curve below shows the fans performance is 3.93m3/s @ free air with a peak performance of 2.6m3/s at 475Pa. The fan can perform anywhere between these 2 points, but we would suggest the fan is not selected to perform past it's max point as shown below by a blue dot
73dB(A) at 3 metres from the listener
|Code & Description||Price|
|TCBBx2/4-560 : TCBBx2/4-560 Soler and Palau (S&P) High Pressure 2 stage short cased axial also known as TP56014 by Vent Axia||£737.96 + VAT£885.55|
