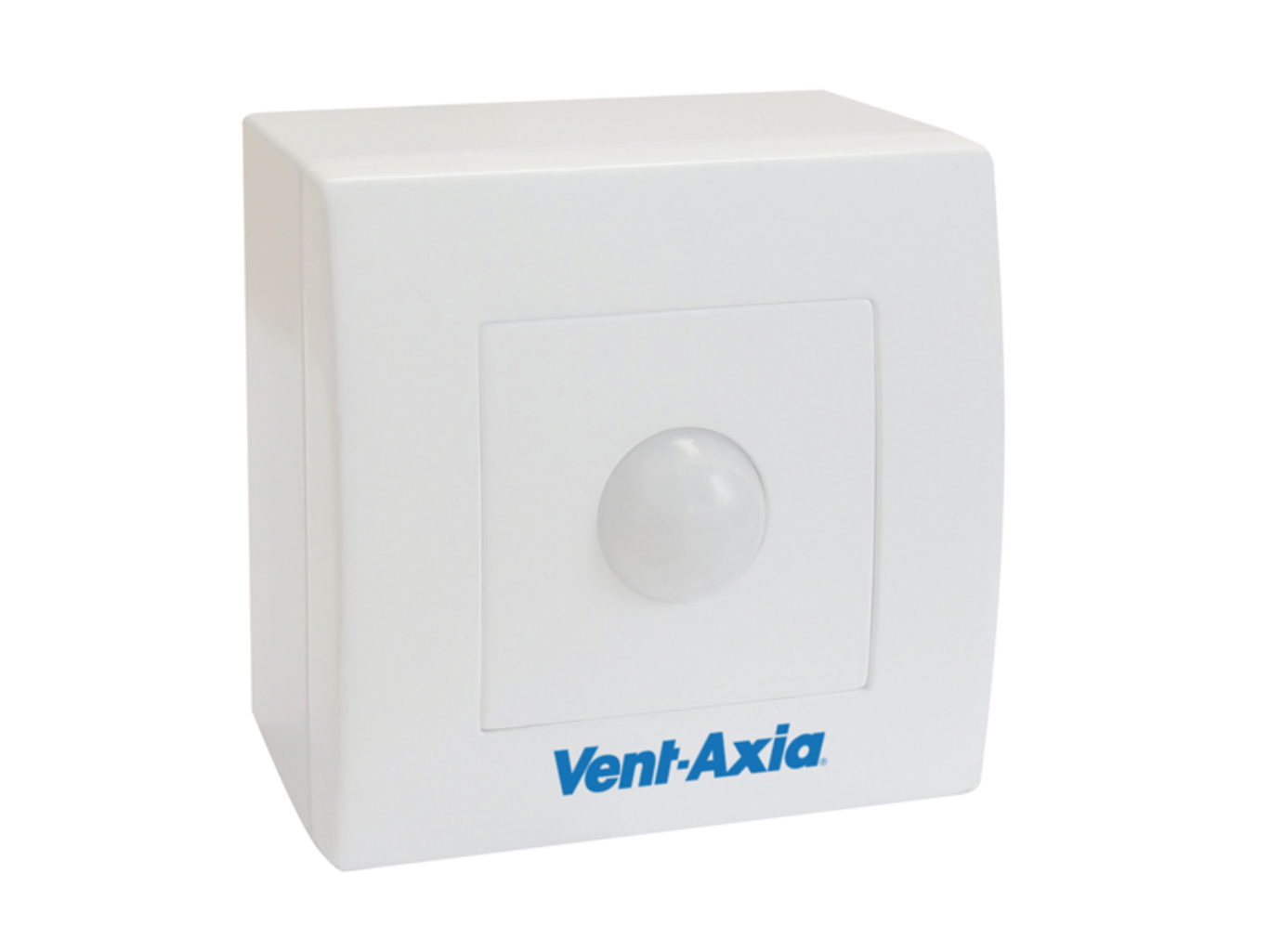

Vent Axia Visionex PIR Sensor 459623A – c/w run on timer settable between 5 - 25 minutes
Vent-Axia
Prices & Options
c/w run on timer settable between 5 - 25 minutes
Vent Axia Wall or Ceiling Mounted movement detector for use with any domestic/commercial fan. Suitable for use with Vent Axia T‑Series controller on AUTO setting.
Suitable to to be wired for On/Off or Trickle/Boost operation.
Includes an adjustable run on timer (5−25 minutes).
Will detect movement up to 10 metres away.
Internal use only.
Fits any UK single gang mounting box (not included).
A great energy saving device. The fan will only run when the sensor senses movement.
- Fits any UK Single Gang Mounting box
- Adjustable Run on Timer (5−25 minutes)
- Range of detection up to 10 metres
- Designed to meet IP43
- Ambient operating temperature range 0‑deg C to + 50-deg C
- Maximum load: 2.5 amps/600W inductive. Not suitable for use with Lighting
- Internal use only
- No switched live required for internal rooms and WC’s
- Double Insulated
- Volt-Free Contacts
- Supply Voltage 220 – 240V/1Ph/50hz
| Code & Description | Price | |
|---|---|---|
| 459623A : Vent Axia Visionex PIR Sensor 459623A | £141.09 + VAT £169.30 | |
