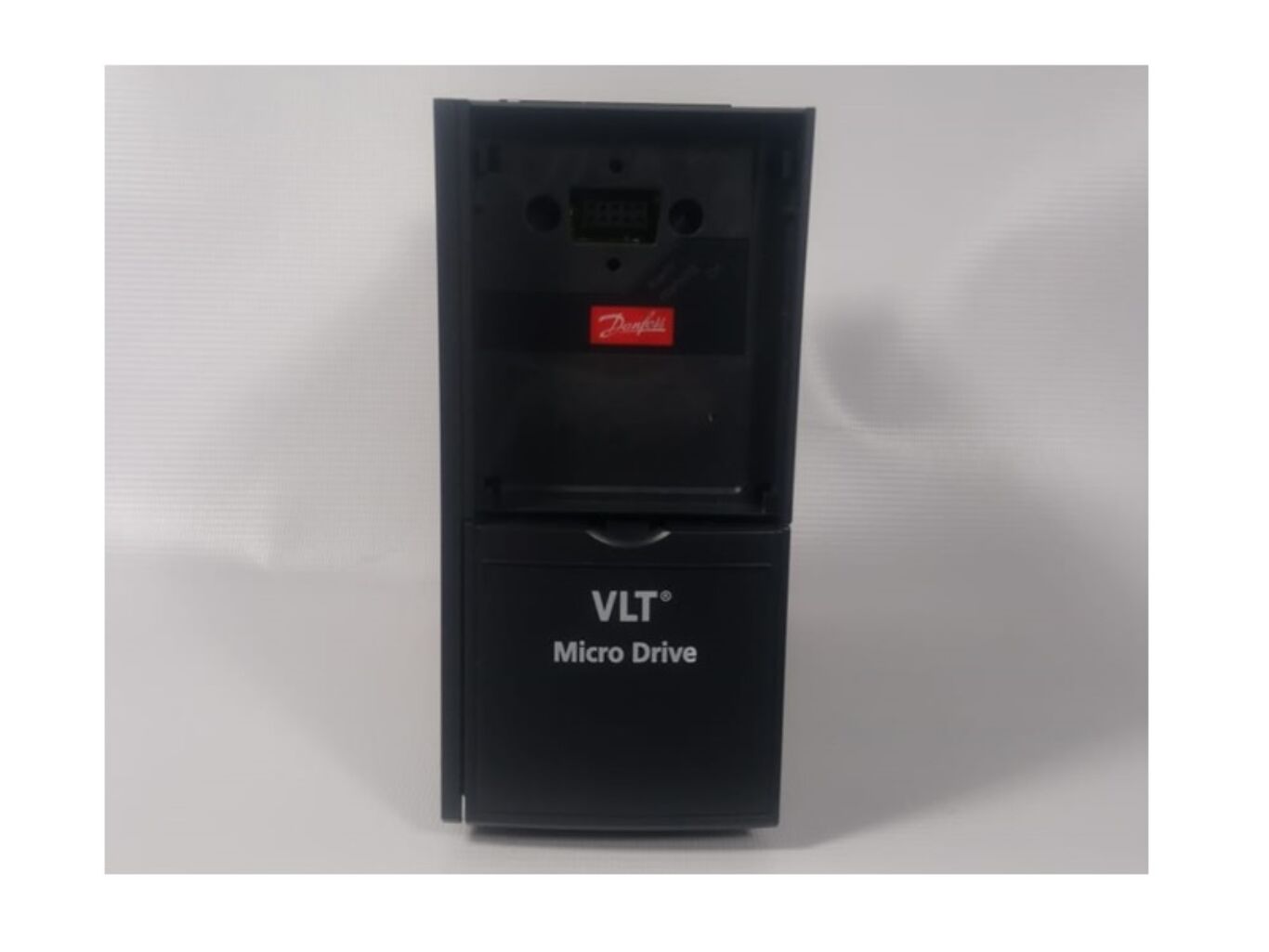

Flakt Woods VLT Micro Drive — Inverter Speed Controller — 9.6 amps 2.2kW 1ph 230V in 3ph 230V out manufactured by Danfoss

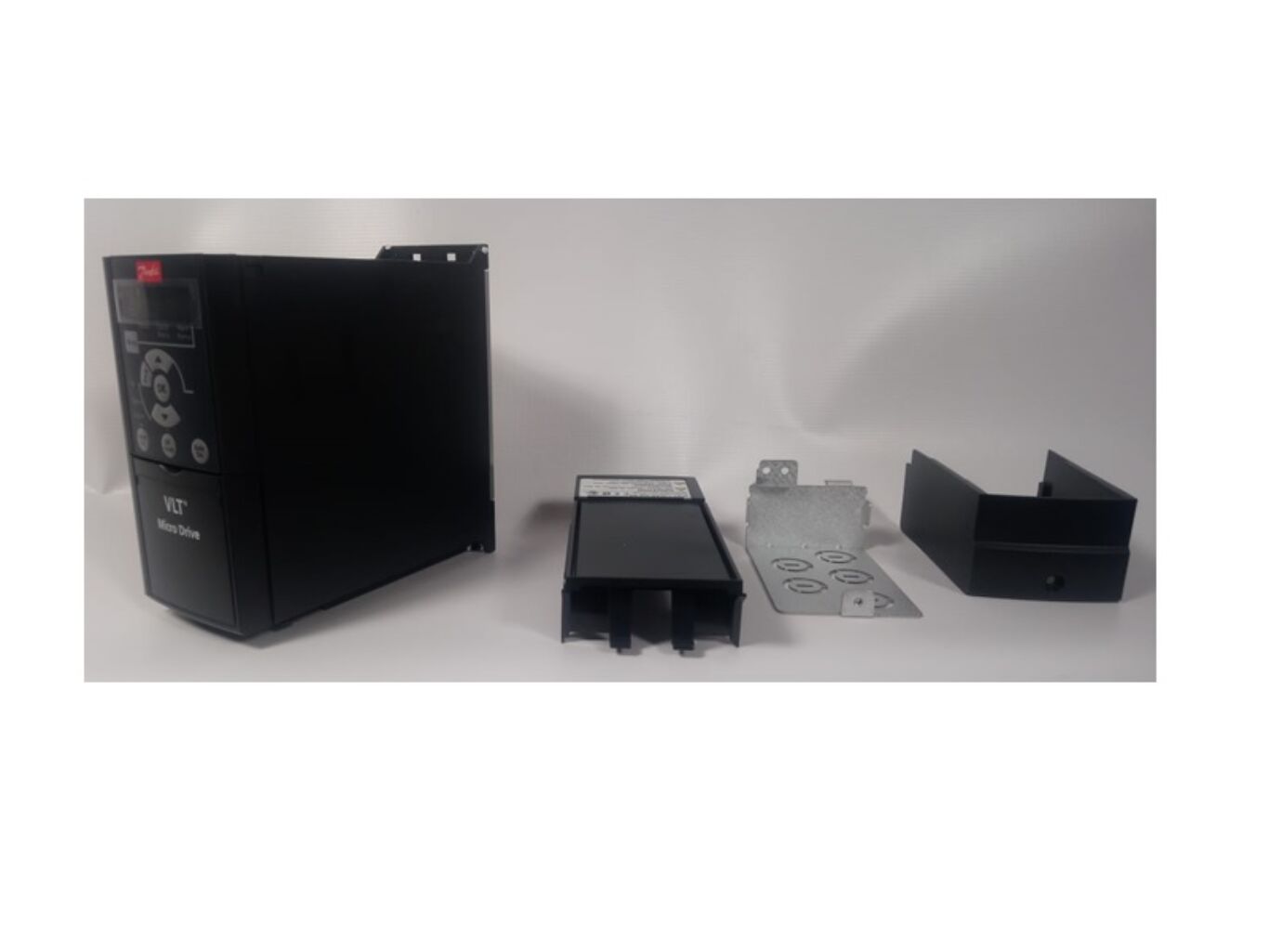

Includes Potentiometer and conversion kit

VLT micro Drive 9.6 amps 2.2 kW 1ph 230V in 3ph 230V out

Real Space saving side-by-side
A compact book style design allows real side by side mounting without derating.

Minimum penetration of dust
VLT Micro drive is designed to keep the forced ventilation away from the electronics. Printed circuit boards are well protected inside the drive.

Built-in brake functions
With built in DC and AC brake functions, VLT Micro Drive can transform kinetic energy in the application into braking power to slow down the motor. A brake chopper is built-in the drives from 1.5 kW upwards.

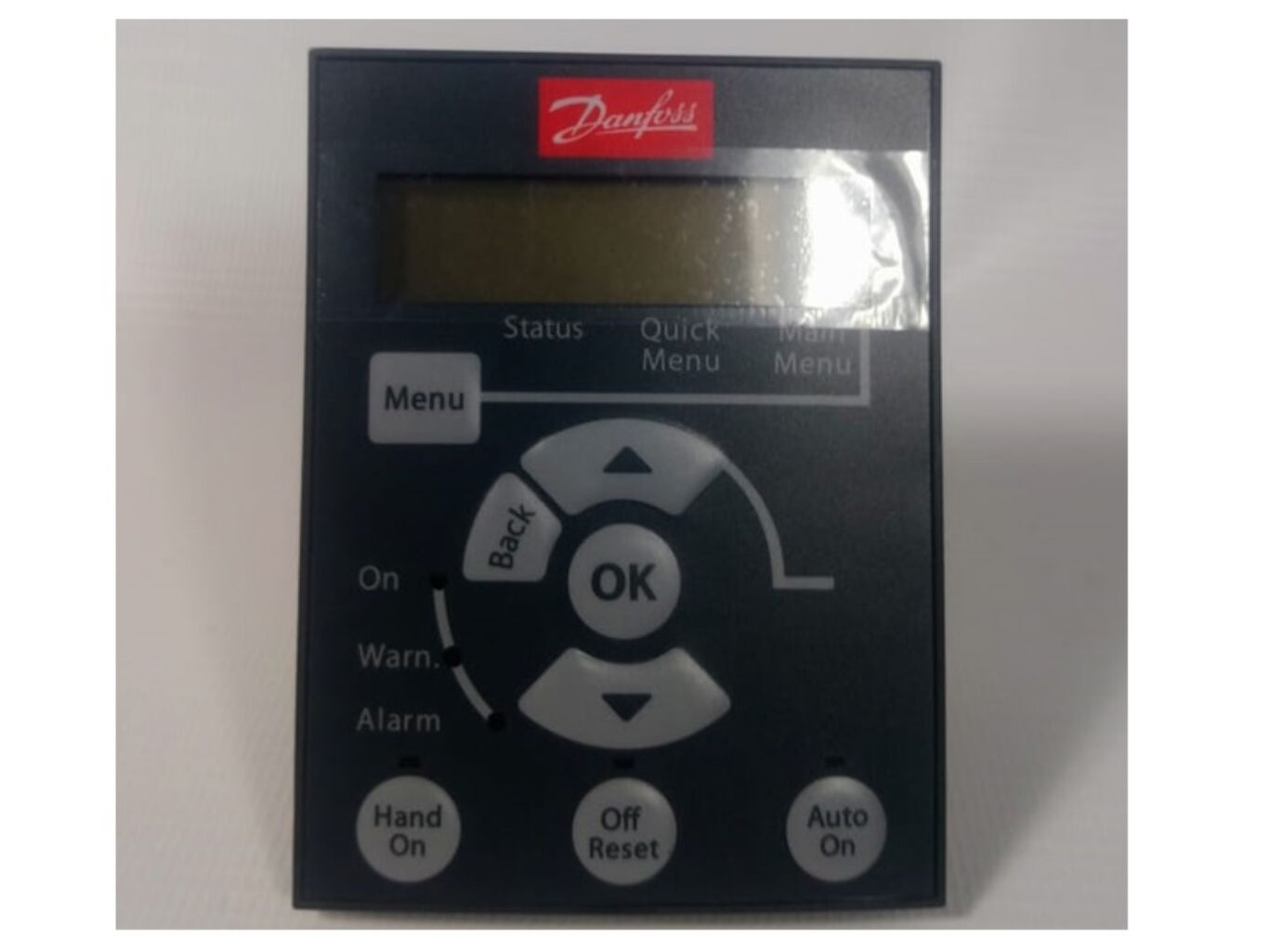

LCP Without Potentiometer

LCP Without Potentiometer
Remote Mounting Kit
LCP Copy function
Parameter numbers and values visible simultaneously
Unit indications (A., V, Hz, RPM, %, s, HP and kW)
Rotation direction indication
Setup indication – 2 setup
Removable during operation
up – and download functionality

Large figures, easy to read
Display readable from distance
Operatrion buttons are illuminated when active

Quick menus
A Danfoss defined quick menu
Basic settings
PI controller

Menu structure
Based on the well-known matrix from the VLT family
Easy shortcut for the experienced user
Edit and operate in different set-ups simultaneously

Dimensions
Height – 239
Width – 90
Depth — 194
