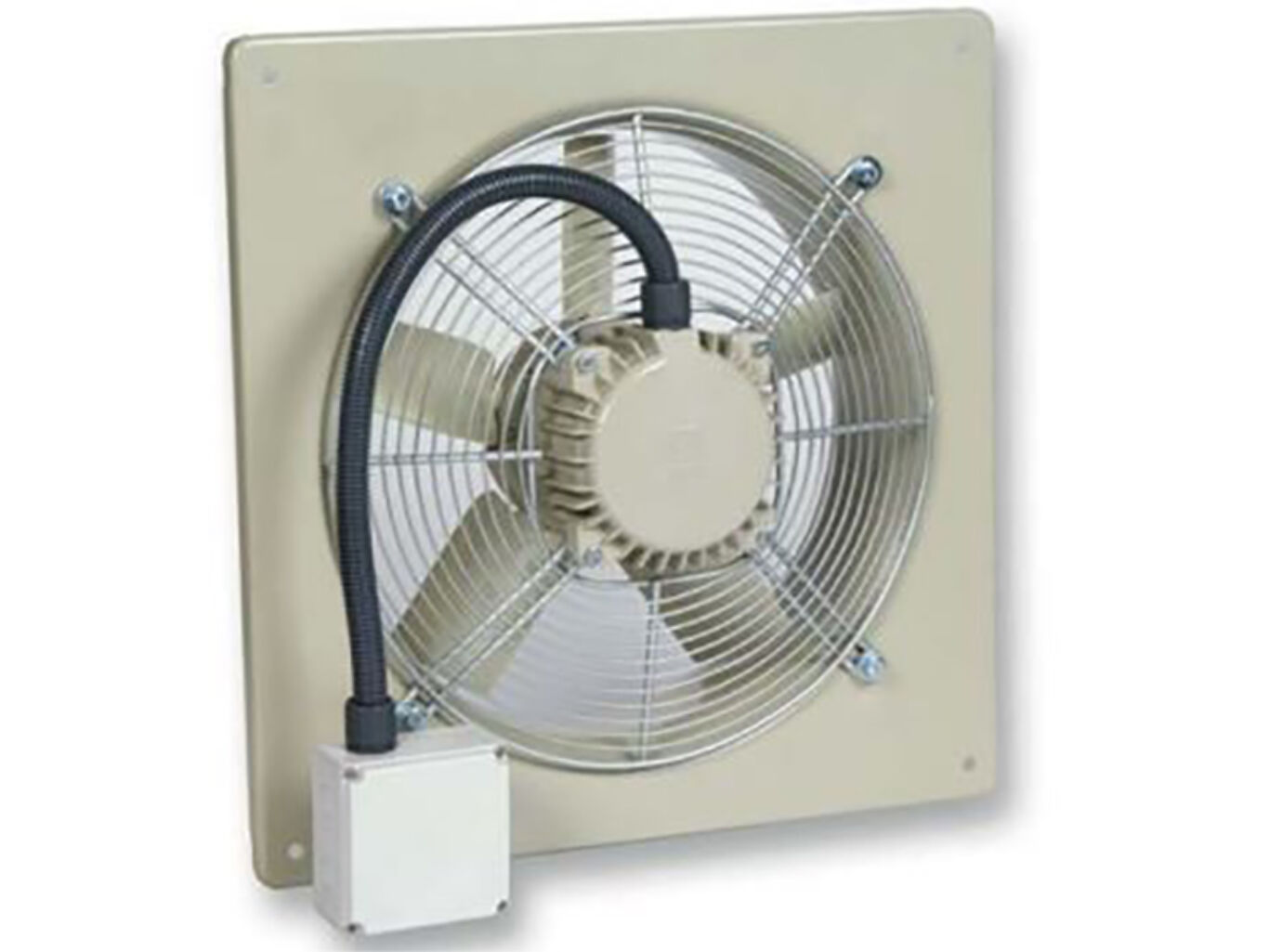

SCP400/4 – 1AC Elta Fans Compact Plate Axial
PLEASE NOTE THIS PRODUCT IS OBSOLETE, WE CAN OFFER A REPLACEMENT MOTOR PLEASE SEE MOTOR PART NUMBER 600-VP-80AB-4P IF YOU WOULD LIKE TO ORDER
The Compact SCP is a plate axial fan from Elta featuring their new high efficiency impeller. The fan design, construction and finish provides for a strong durable and weatherproofed range.
All 1ph fans are suitable for speed control
An all metal fan casing and guard provide a long lasting and robust construction
Impellors hubs are die cast aluminium and the blades high quality GRP
Fans are suitable for operating temperatures between ‑20°C and +70°C fixed speed and ‑20°C and
+50°C when used with a speed controller
Fans have a powder coated polyester epoxy paint finish in pastel beige (RAL 7032)
The curve below shows the fans performance, which is 1.38 m³/s at Free Air and peaks at 0.91 m³/s at 100Pa, the fan can perform anywhere between these points.
|Code & Description||Price|
|scp400 : SCP400/4-1AC Elta Fans Compact Plate Axial||£219.84 + VAT £263.81|
